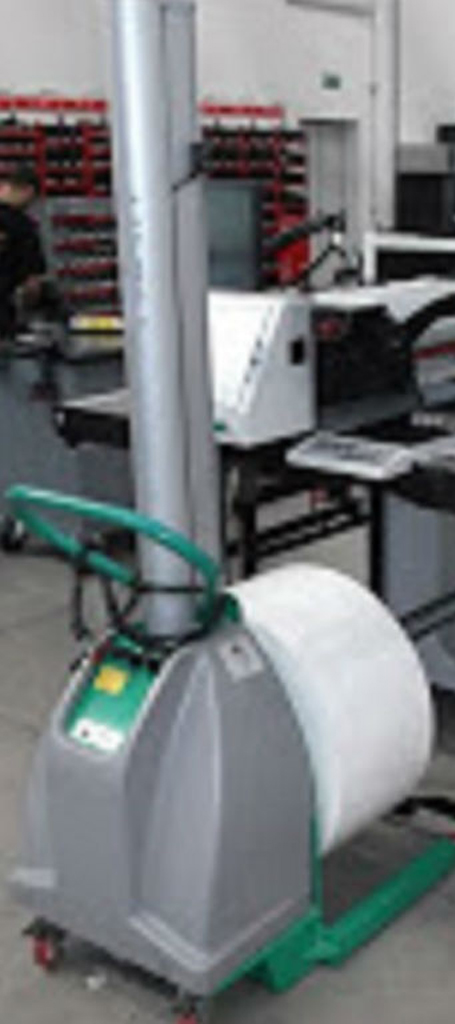

NEWBINGO SLG

Semi-electric minilifter, featuring a capacity of 100/200 kg and a lifting height of 1500/2000 mm with straddle legs

NEWBINGO SLG

NEWBINGO SLG is a multifunction minilifter with manual drive and electric lifting, with aluminium mast to ensure lightness and great manoeuvrability. Featuring a capacity of 100 or 200 kg and a lifting height of 1500 or 2000 mm. Fitted with 2X12V 38Ah lead-acid batteries that require no maintenance and a 24V 6A built-in charger. Two fixed wheels and two castor wheels with brake (optional feature: four castor wheels). With front fixed spokes extended to 650 mm. Different accessories are available to complete the machine (see table in the ACCESSORIES section)

  • Manaul
  • Brochure

See compatible accessories

Request information

For information send an email to [email protected] or contact us at +39 0386 801814
  • Gallery
  • Technical data
No images found.

Capacity

kg

100/200

Lifting

mm

1500/2000

Mast Height

mm

1920/2420

Rollers

N/mm

2/80x30

Wheels

N/mm

2/100x30

Lifting motor

V/W

24/300

Lifting speed

cm/sec

8,3/6,0

Battery

NxV/Ah

2x12/38

Charger

V/A

24/6

Weight

kg

108/112

[larghezza razze]

mm

650

[luce interna razze]

mm

550

Accessories

  • A - GRIPPER

    A - GRIPPER

    GRIPPER

  • AE - ELECTRIC FRONTAL CLAMP

    AE - ELECTRIC FRONTAL CLAMP

    ELECTRIC FRONTAL TURNING CLAMP

  • AEG - ELECTRIC LATERAL CLAMP

    AEG - ELECTRIC LATERAL CLAMP

    ELECTRIC LATERAL TURNING CLAMP

  • AL CL - CLAMP WITH SIDE TURNING

    AL CL - CLAMP WITH SIDE TURNING

    MANUAL CLAMP WITH SIDE TURNING

  • B - REEL HOLDER

    B - REEL HOLDER

    REEL HOLDER

  • BP - PIVOTING CRADLE

    BP - PIVOTING CRADLE

    PIVOTING CRADLE

  • C - ROLLER PLATFORM

    C - ROLLER PLATFORM

    ROLLER

  • CF - FRONT CRADLE

    CF - FRONT CRADLE

    FRONT CRADLE

  • DS - DOUBLE SPUR

    DS - DOUBLE SPUR

    DOUBLE SPUR

  • F - FORKS

    F - FORKS

    FORKS

  • G - HOOK

    G - HOOK

    HOOK

  • P - PLATFORM

    P - PLATFORM

    NYLON PLATFORM

  • PS - METAL PLATFORM WITH SPHERES

    PS - METAL PLATFORM WITH SPHERES


  • PV - GLASS HOLDER

    PV - GLASS HOLDER

    GLASS HOLDER

  • R - ROTO-REELS

    R - ROTO-REELS

    ROTO-REELS

  • S - SPINDLE

    S - SPINDLE

    SPINDLE

  • SR - SPUR WITH ROLLERS

    SR - SPUR WITH ROLLERS

    SPINDLE WITH ROLLERS

  • VS - ROTO-REELS

    VS - ROTO-REELS

    GEARED ROTO-REELS

  • WS - WEIGHING FORKS

    WS - WEIGHING FORKS

    WEIGHING FORKS
