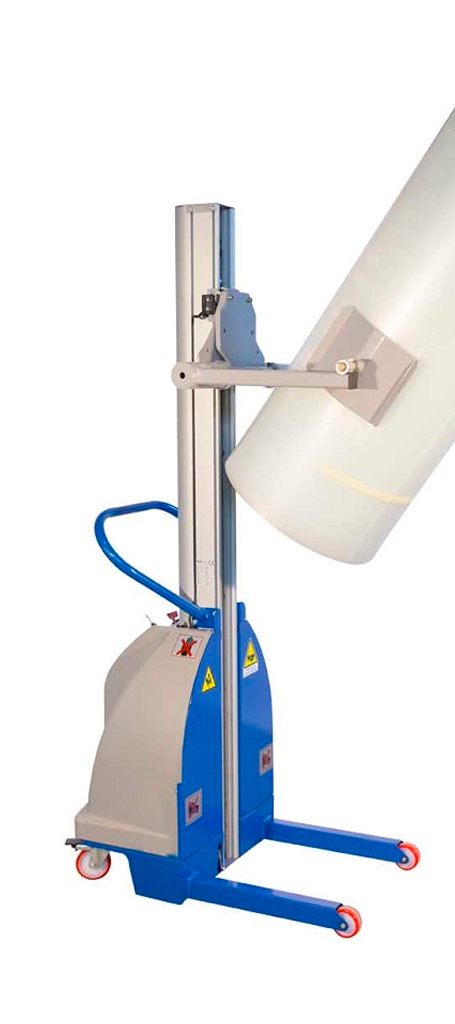

NEWBINGO 200

Multifunction semi-electric minilifter, featuring a capacity of 200 kg and a lifting height of 1500 mm

NEWBINGO 200

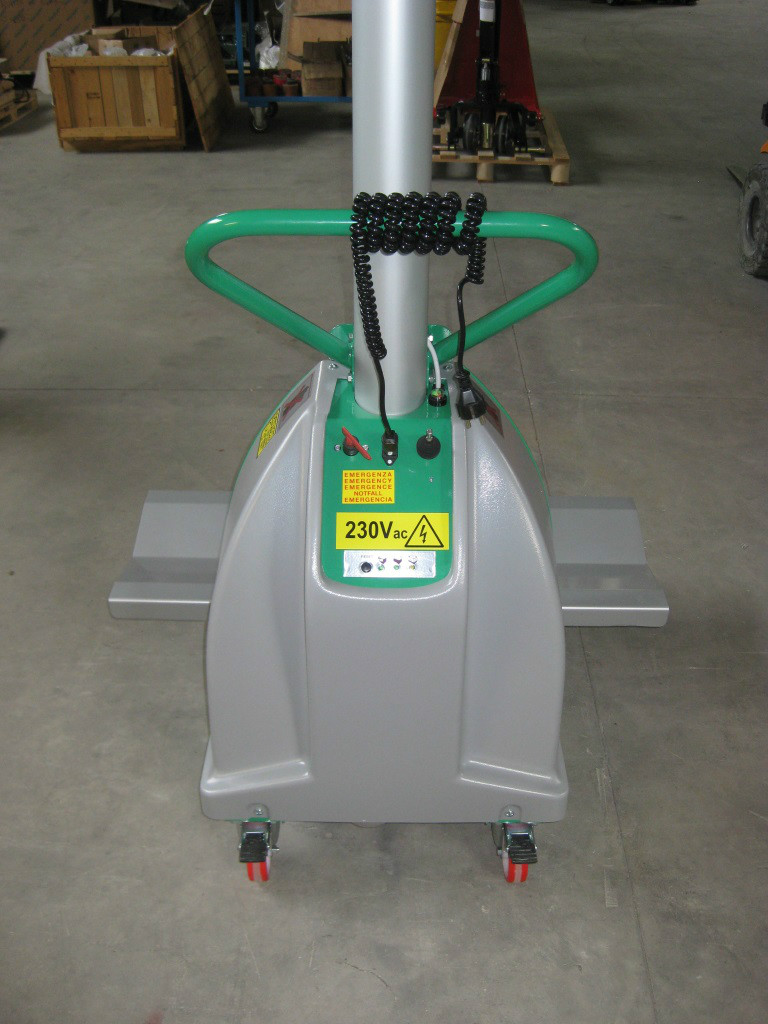

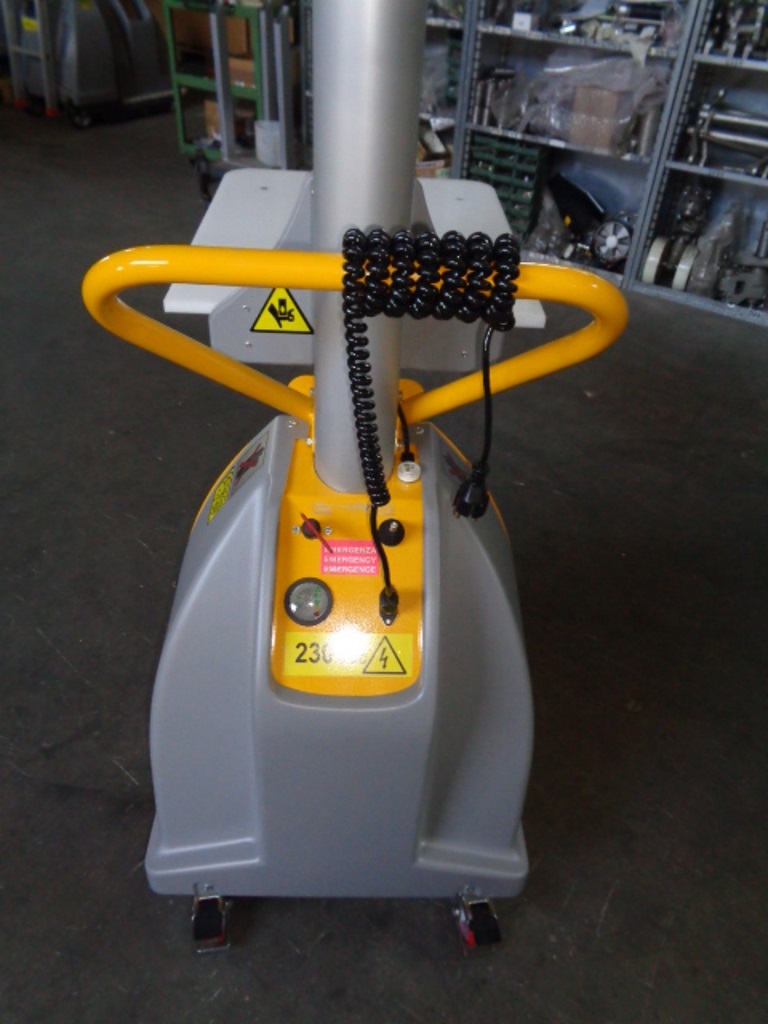

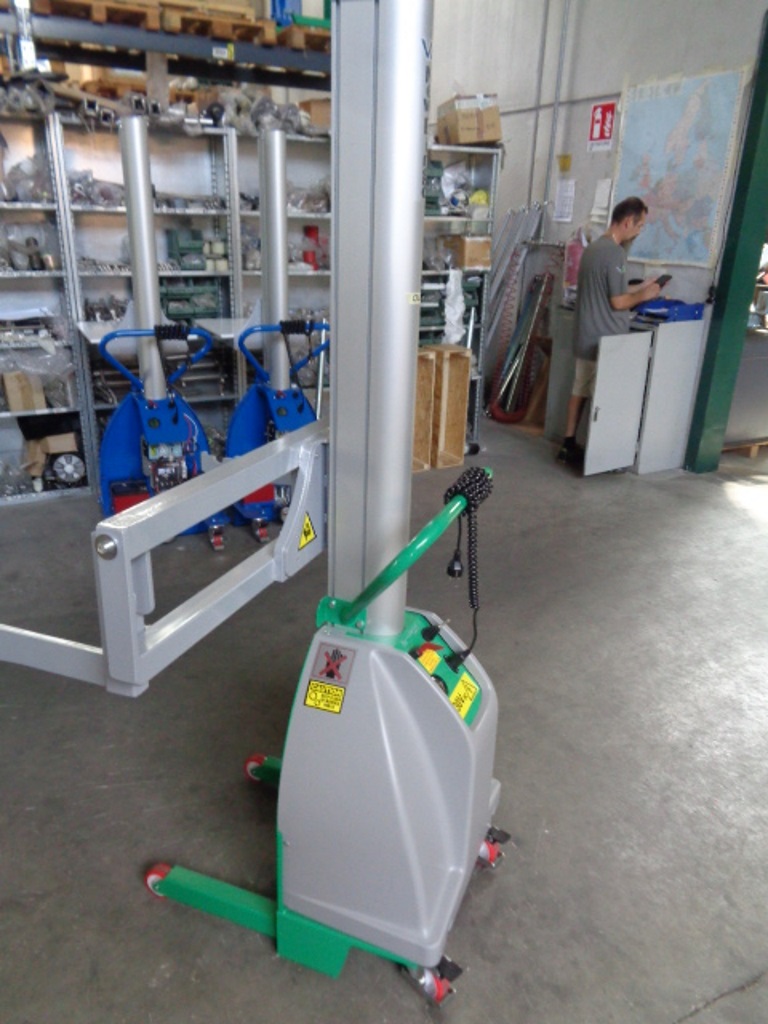

NEWBINGO 200 is a multifunction minilifter with manual drive and electric lifting, with aluminium mast to ensure lightness and great manoeuvrability. Featuring a capacity of 200 kg and a lifting height of 1500 mm. Fitted with 2X12V 38Ah lead-acid batteries that require no maintenance and a 24V 60A built-in charger. Two fixed wheels and two castor wheels with brake (optional feature: four castor wheels). Different accessories are available to complete the machine (see table in the ACCESSORIES section)

  • Manaul
  • Brochure

See compatible accessories

Request information

For information send an email to [email protected] or contact us at +39 0386 801814
  • Gallery
  • Technical data

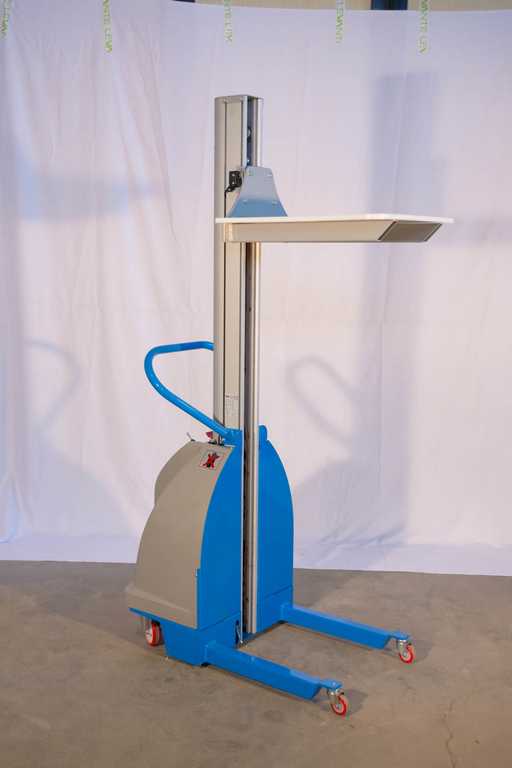

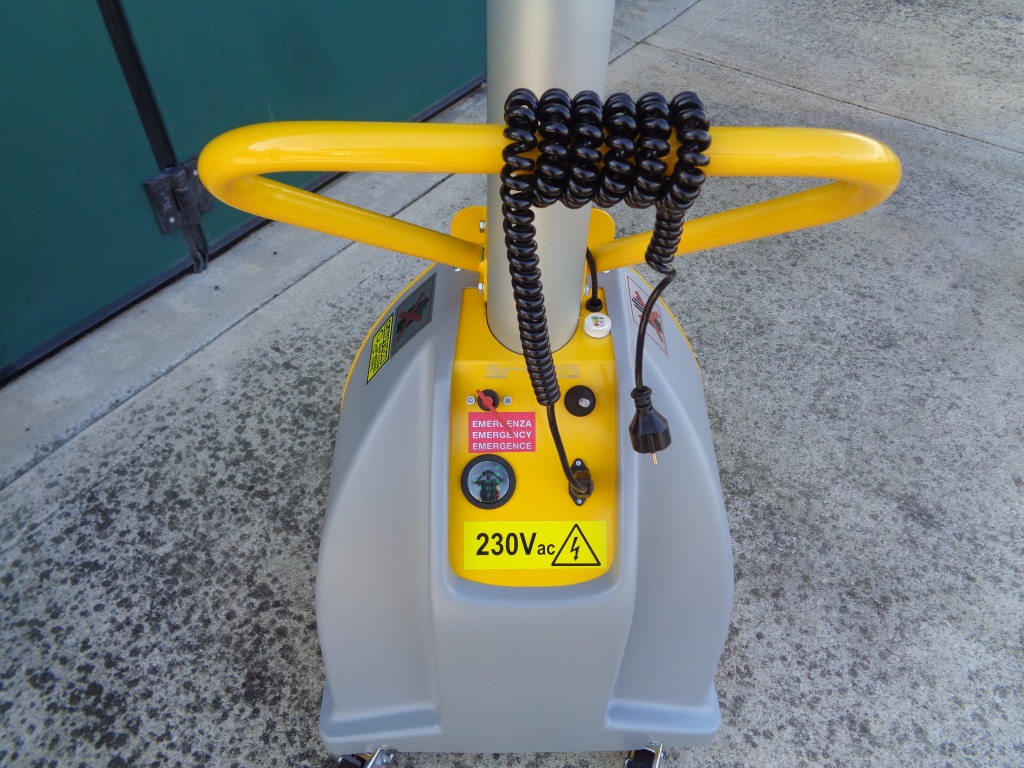

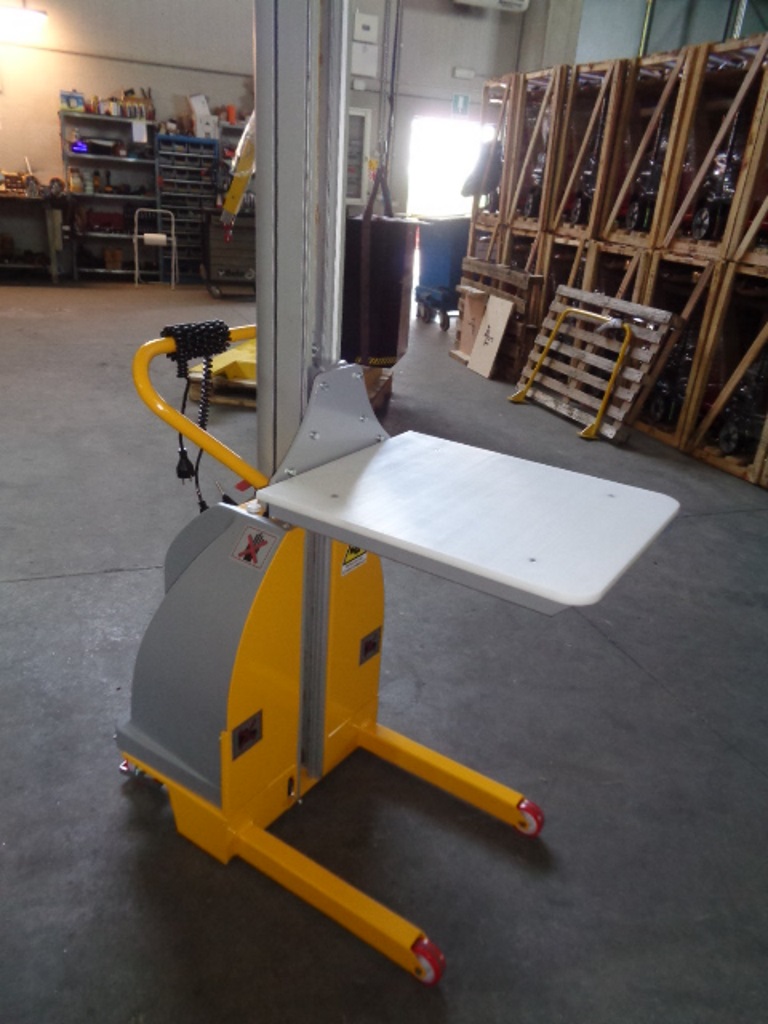

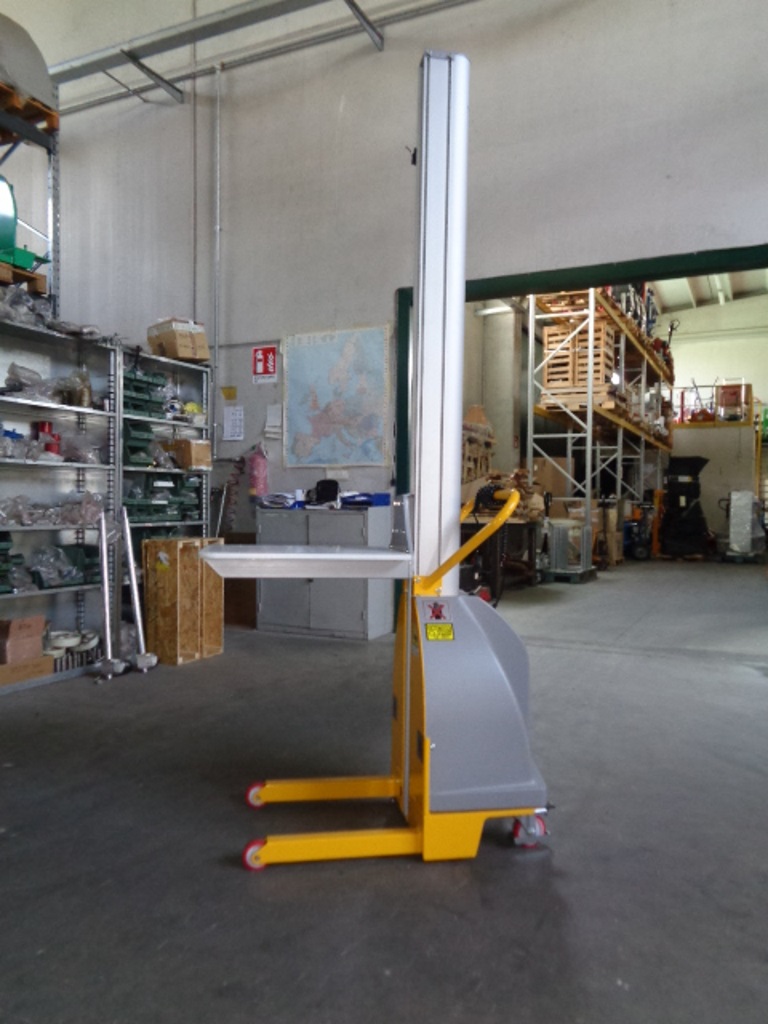

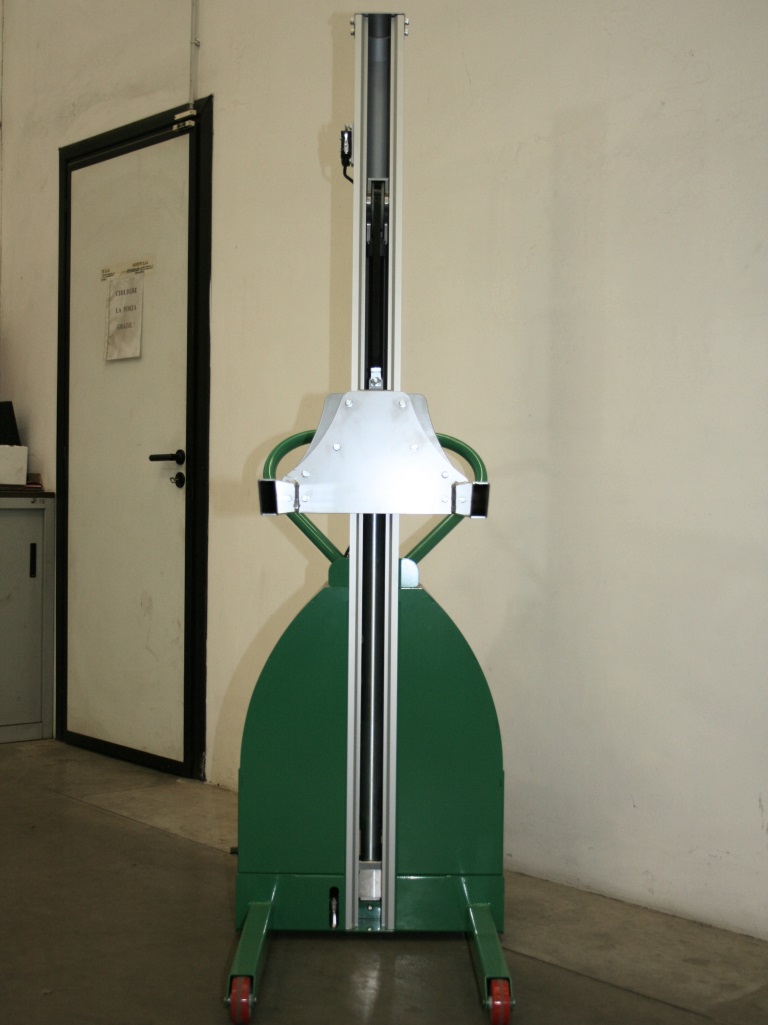

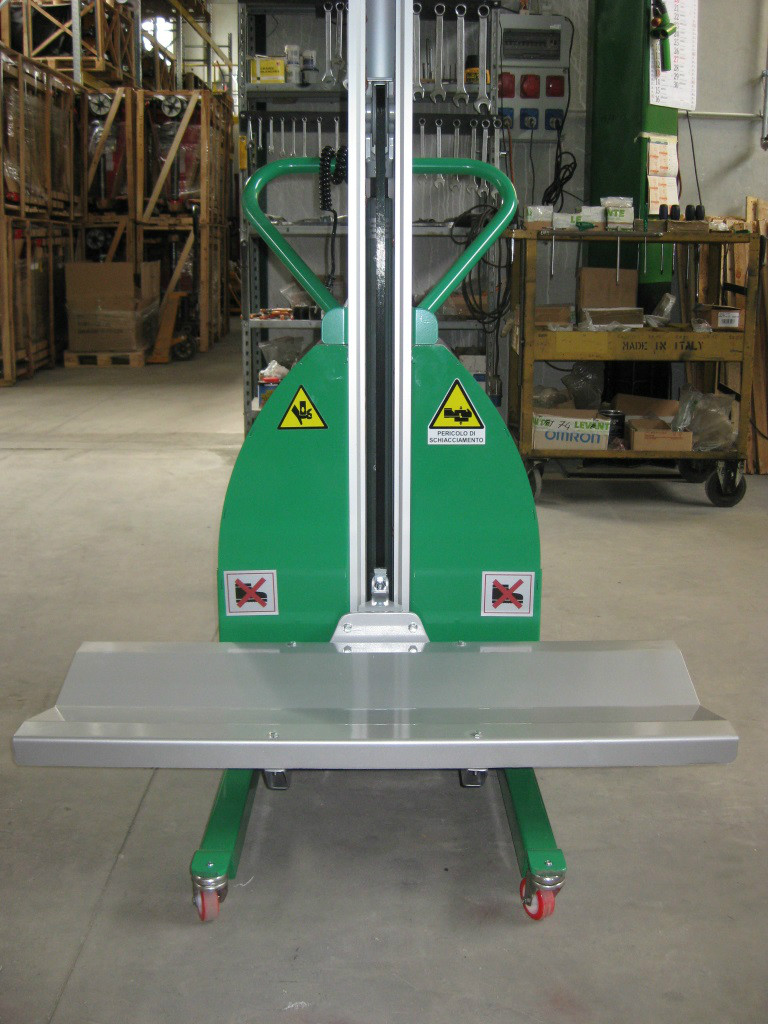

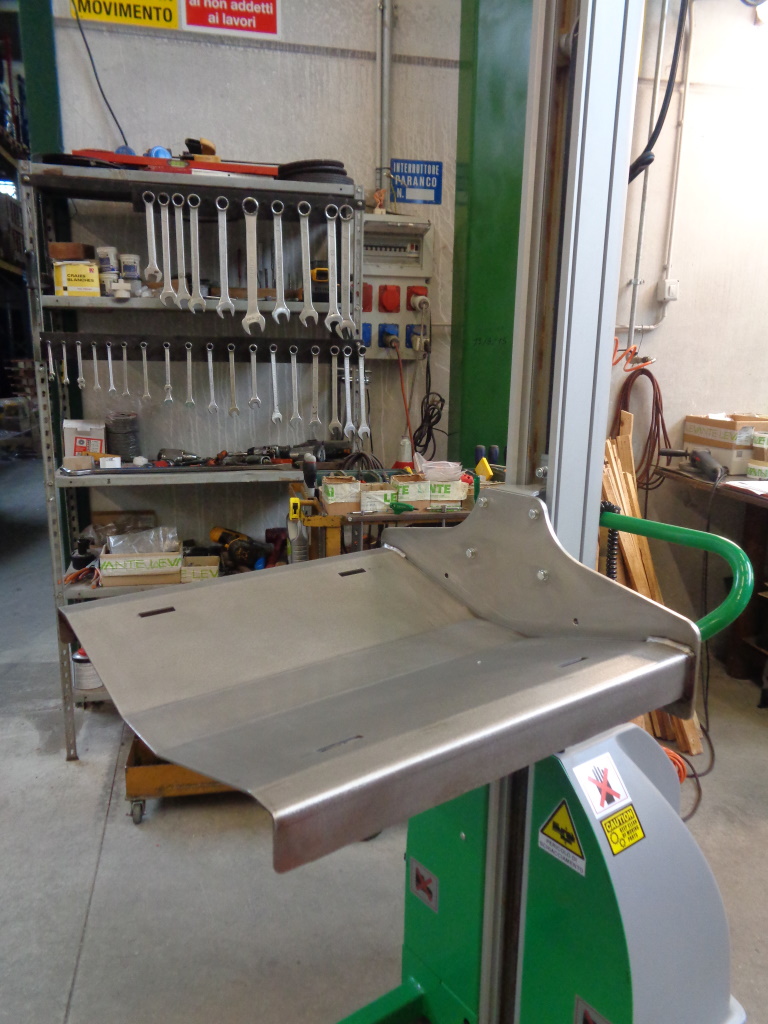

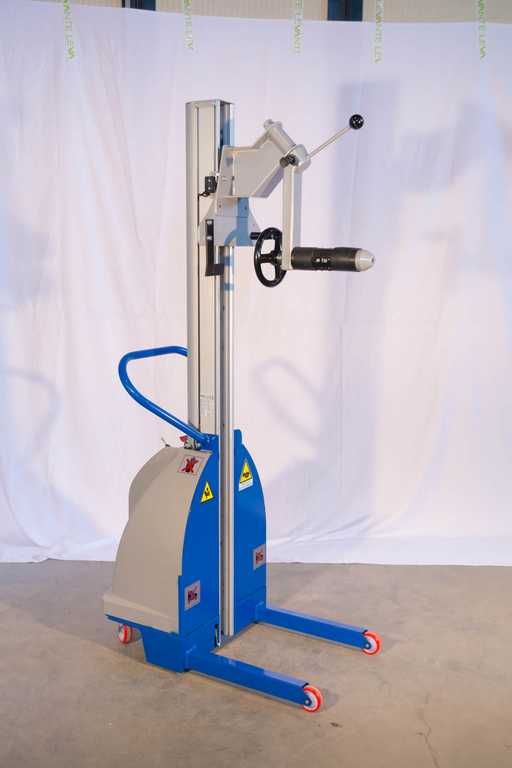

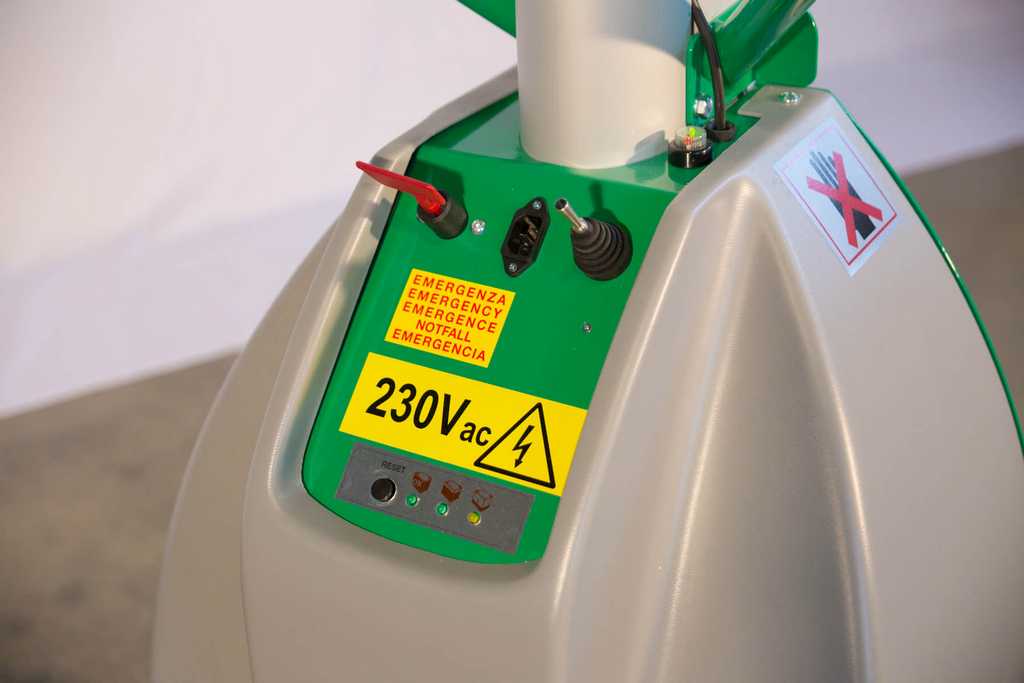

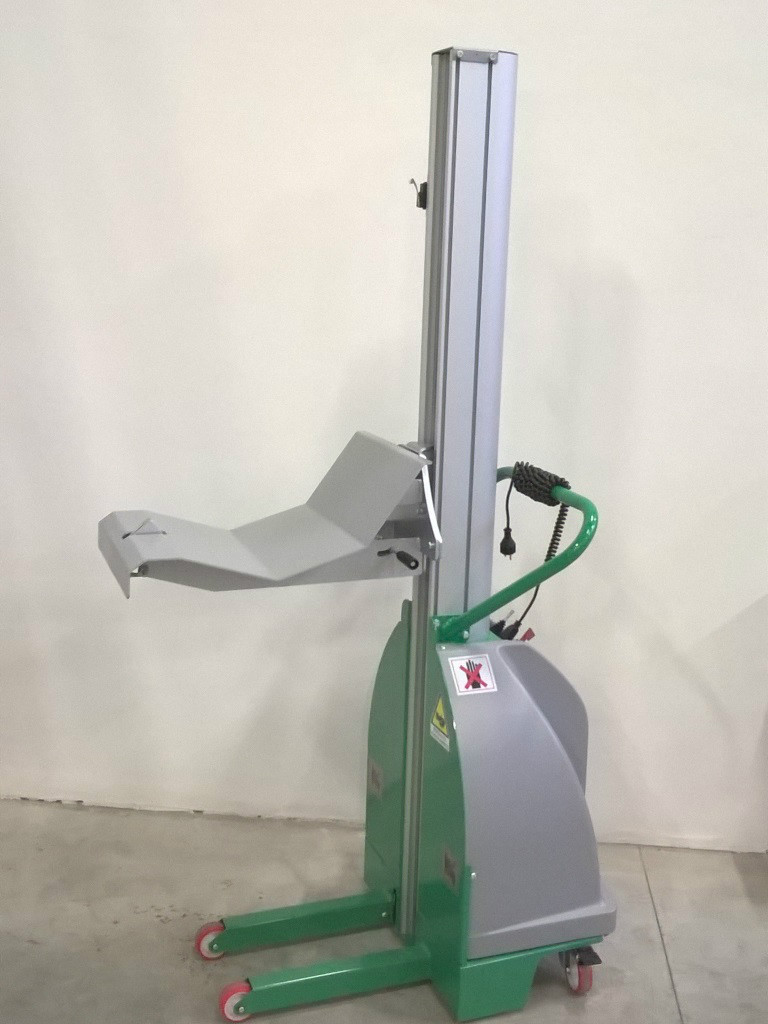

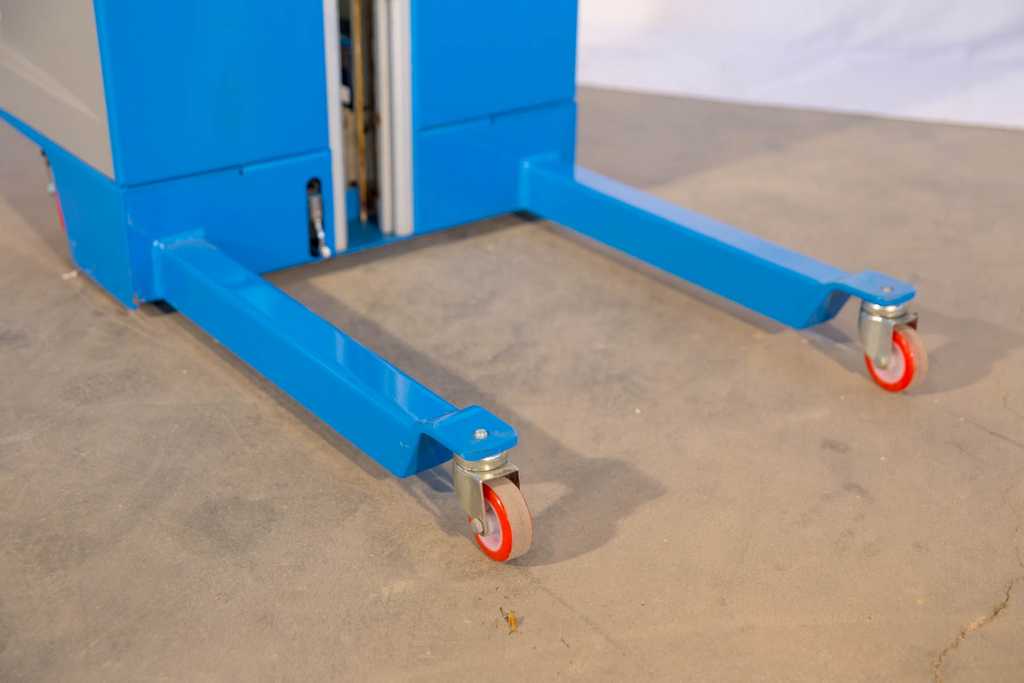

01_new_bingo_with_special_nipper 01_newbingo_minilifter_european_frontal_cradle 01_weighing_forks_for_mini_lifter 02_italian_mini_lifter_with_frontal_cradle 02_mini_lifter_for_reel_with_special_forks 02_new_bingo_lifter_with_weighing_forks_WS 02_weighing_forks_for_european_lifter 03_chassis_mini_lifter_speciale_ral 03_forks__newbingo_elevator_made_in_italy 03_mini_lifter_weighing_forks 03_minilifter_chassis_production_italian 03_sollevatore_levante_culla_frontale 03_weighing_forks_minilifter_WS 04_detail_of_weighing_forks_WS 04_new_bingo_yellow_mini_lifter 05_italian_elevator_newbingo_forks 05_made_in_italy_sollevatore_per_bobine 05_newbingo_minlifter_with_panel 06_mini_lifter_with_tolls_forks 06_newbingo_chassis_yellow_minilifter_levante 10_rotobobine_levante_mini_elevatore 2015-09-30_14.03.46 2015-09-30_14.04.00 2015-09-30_14.05.11 2016-01-29_08.35.02 bigger_rollers culla_con_prolunga dett_frontalev dett_sw forche_speciali_con_fermo_riomovibile forche_speciali_piatte nb200_culla_inox_allungabile nbh1500r nbswh1500 reel_pivoting_lifter_italian

Capacity

kg

200

Lifting

mm

1500

Mast Height

mm

1920

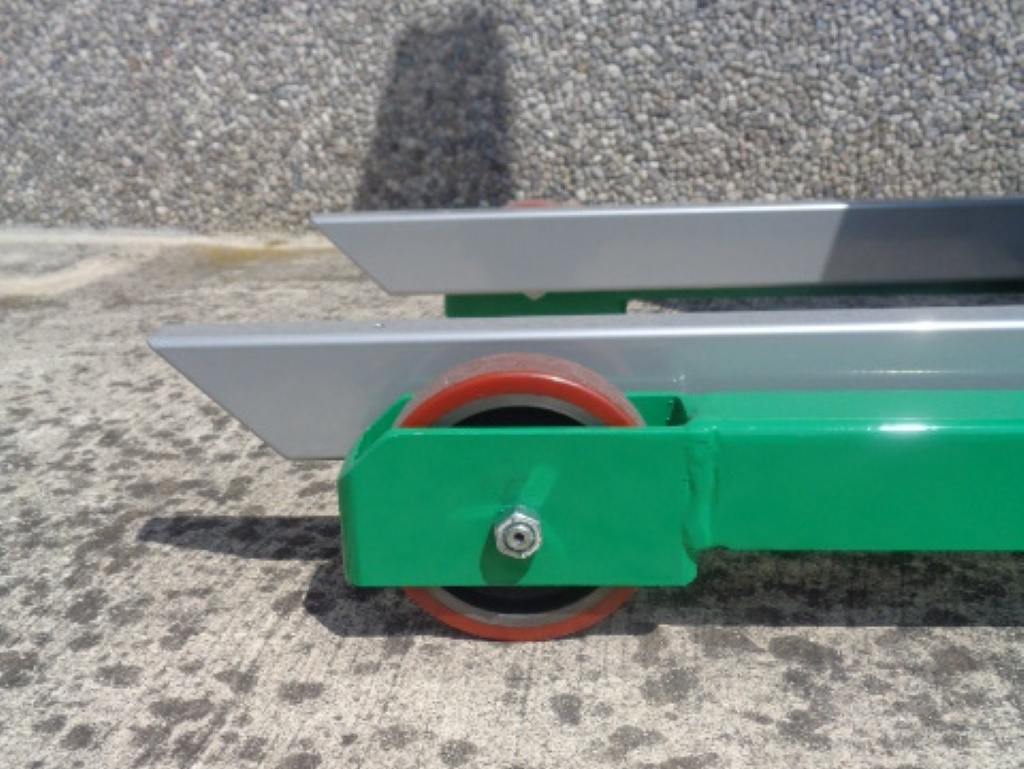

Rollers

N/mm

2/80x30

Wheels

N/mm

2/100x30

Lifting motor

V/W

24/300

Lifting speed

cm/sec

8,3/6,0

Battery

NxV/Ah

2x12/38

Charger

V/A

24/6

Weight

kg

100

Accessories

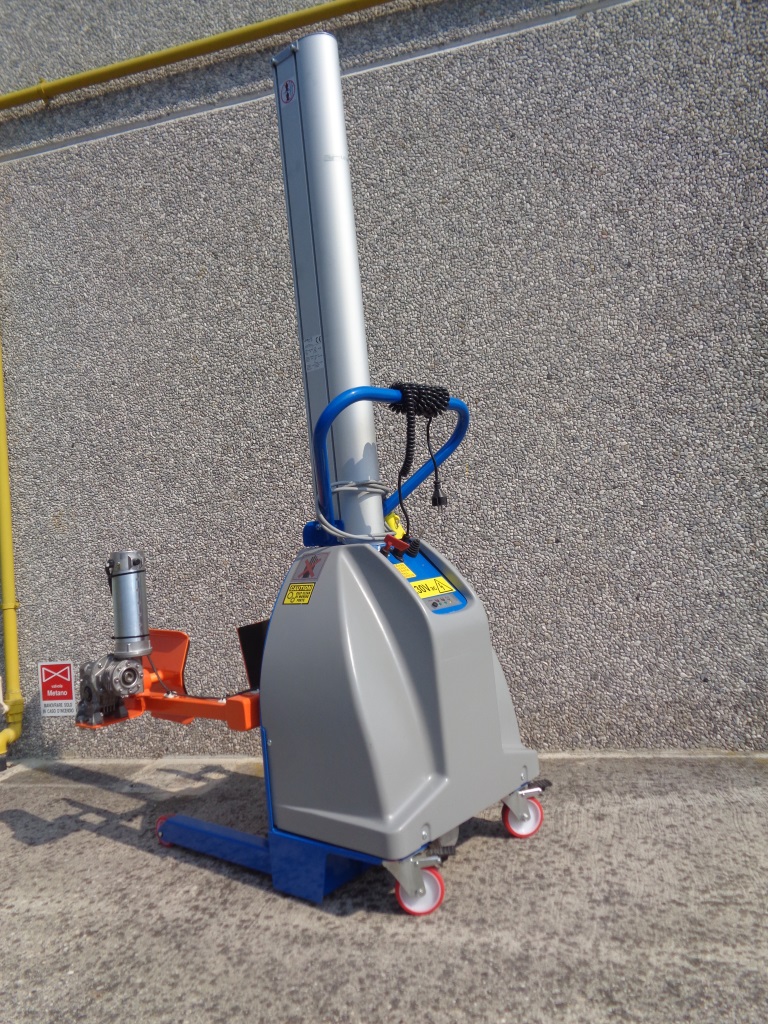

  • A - GRIPPER

    A - GRIPPER

    GRIPPER

  • AE - ELECTRIC FRONTAL CLAMP

    AE - ELECTRIC FRONTAL CLAMP

    ELECTRIC FRONTAL TURNING CLAMP

  • AEG - ELECTRIC LATERAL CLAMP

    AEG - ELECTRIC LATERAL CLAMP

    ELECTRIC LATERAL TURNING CLAMP

  • AL CL - CLAMP WITH SIDE TURNING

    AL CL - CLAMP WITH SIDE TURNING

    MANUAL CLAMP WITH SIDE TURNING

  • B - REEL HOLDER

    B - REEL HOLDER

    REEL HOLDER

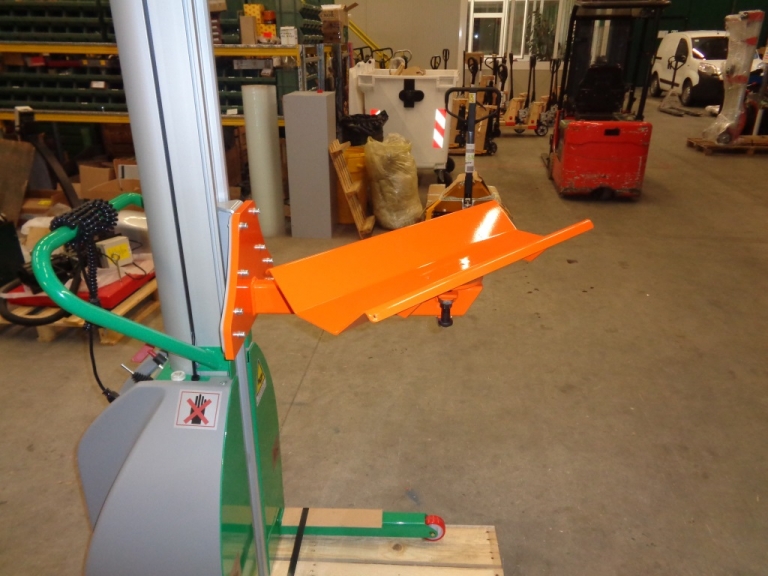

  • BP - PIVOTING CRADLE

    BP - PIVOTING CRADLE

    PIVOTING CRADLE

  • C - ROLLER PLATFORM

    C - ROLLER PLATFORM

    ROLLER

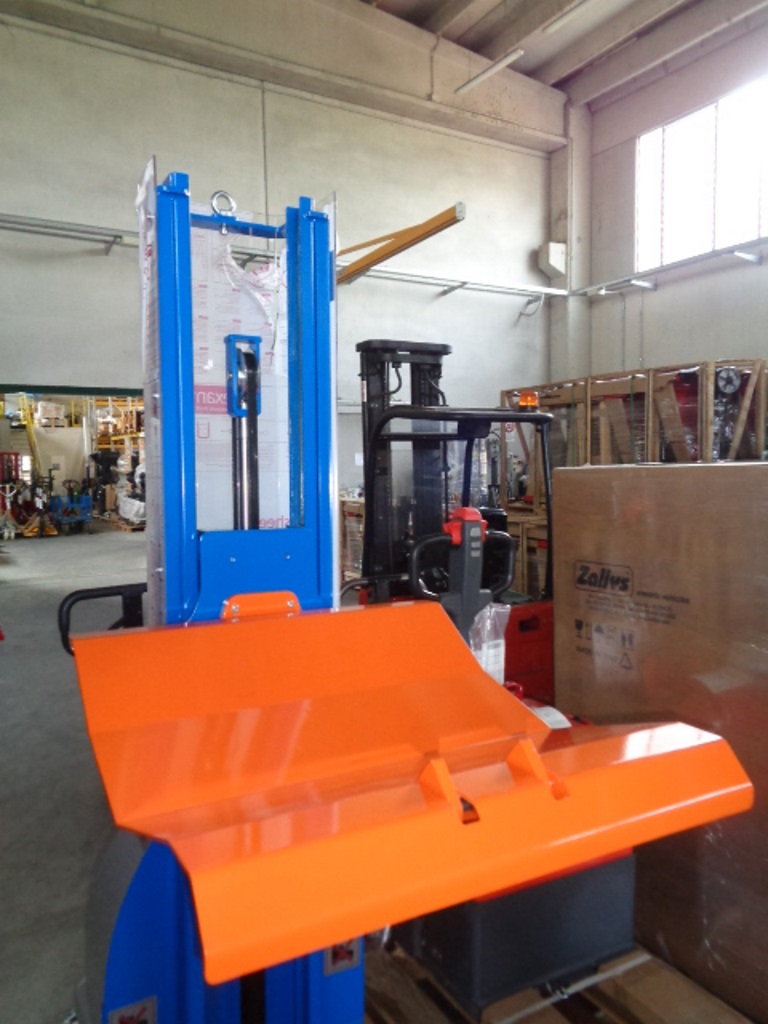

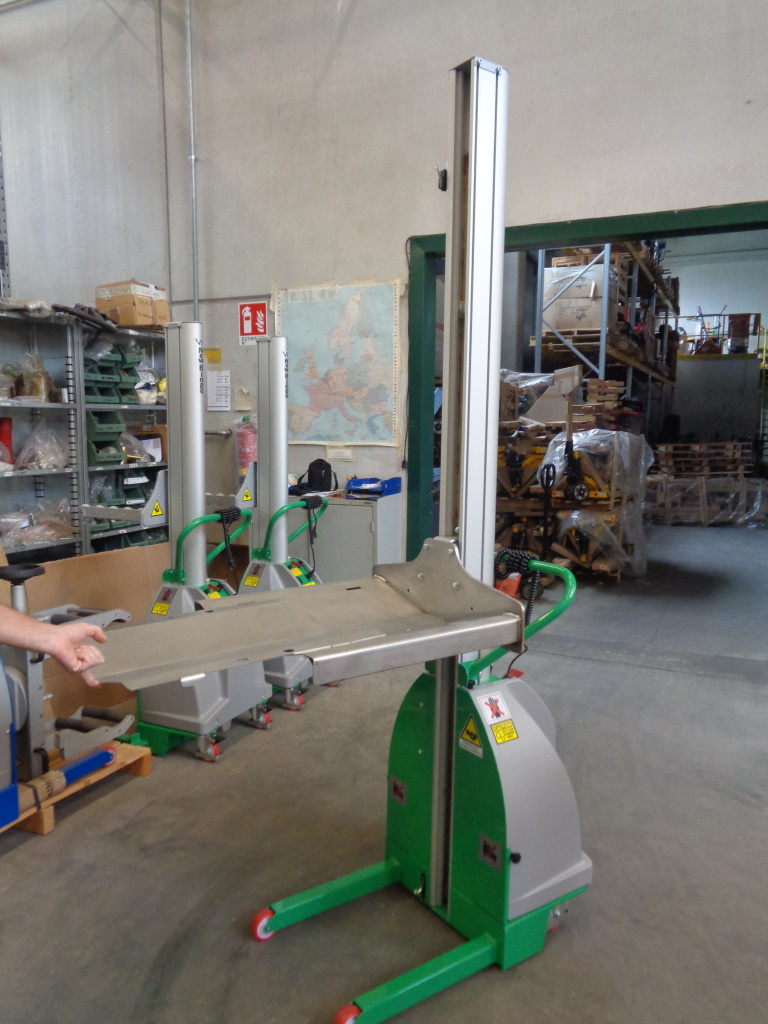

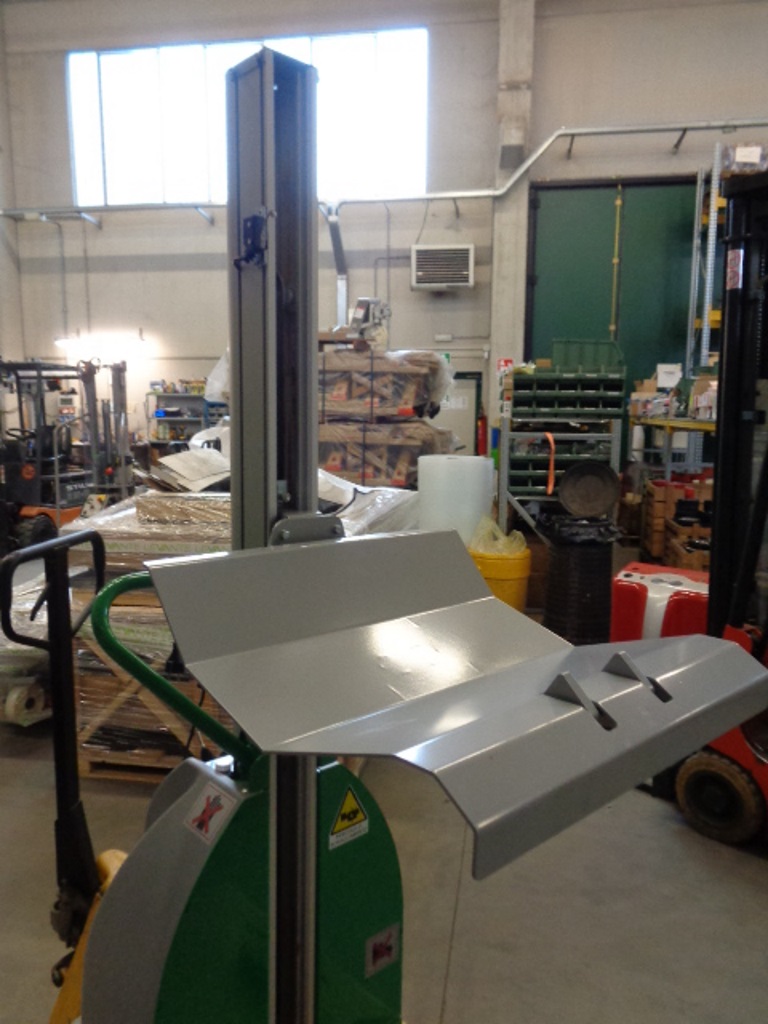

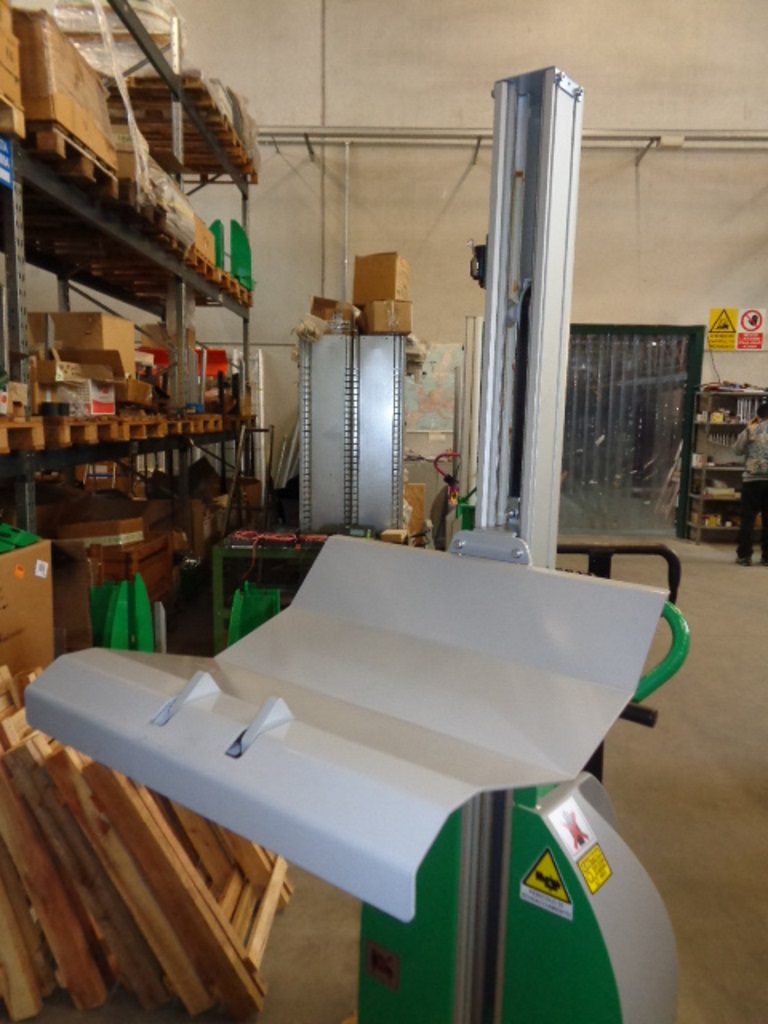

  • CF - FRONT CRADLE

    CF - FRONT CRADLE

    FRONT CRADLE

  • DS - DOUBLE SPUR

    DS - DOUBLE SPUR

    DOUBLE SPUR

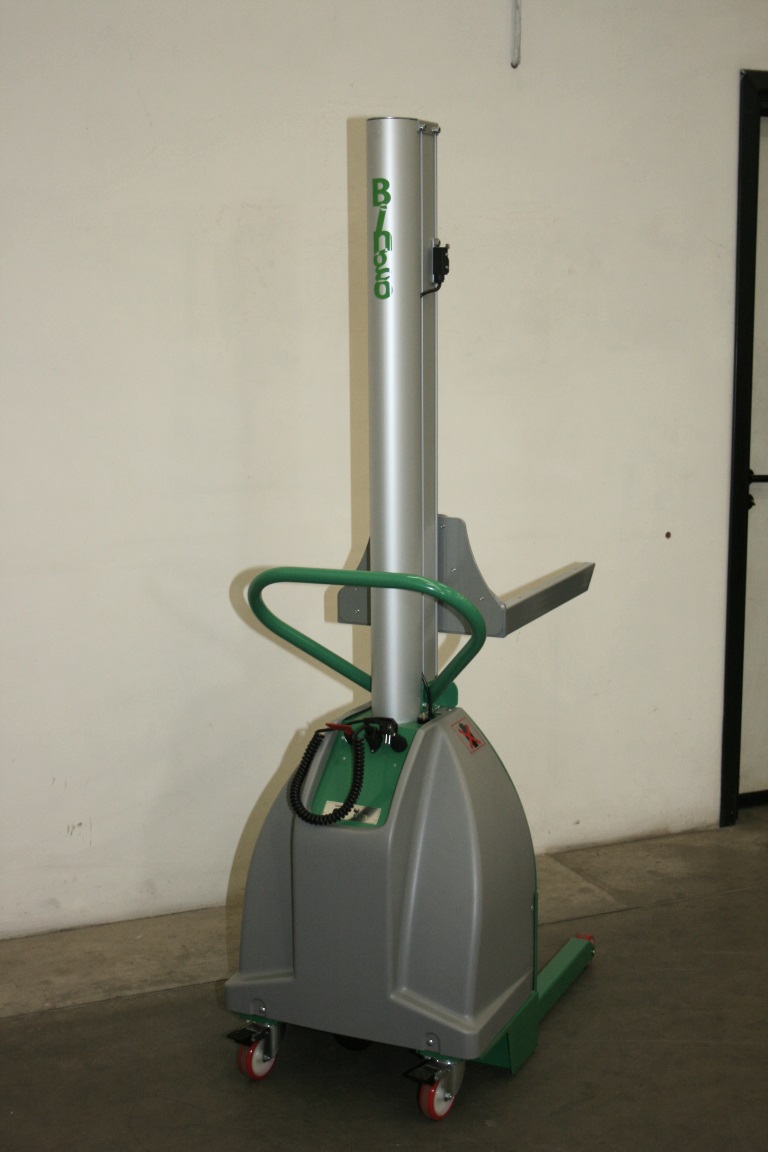

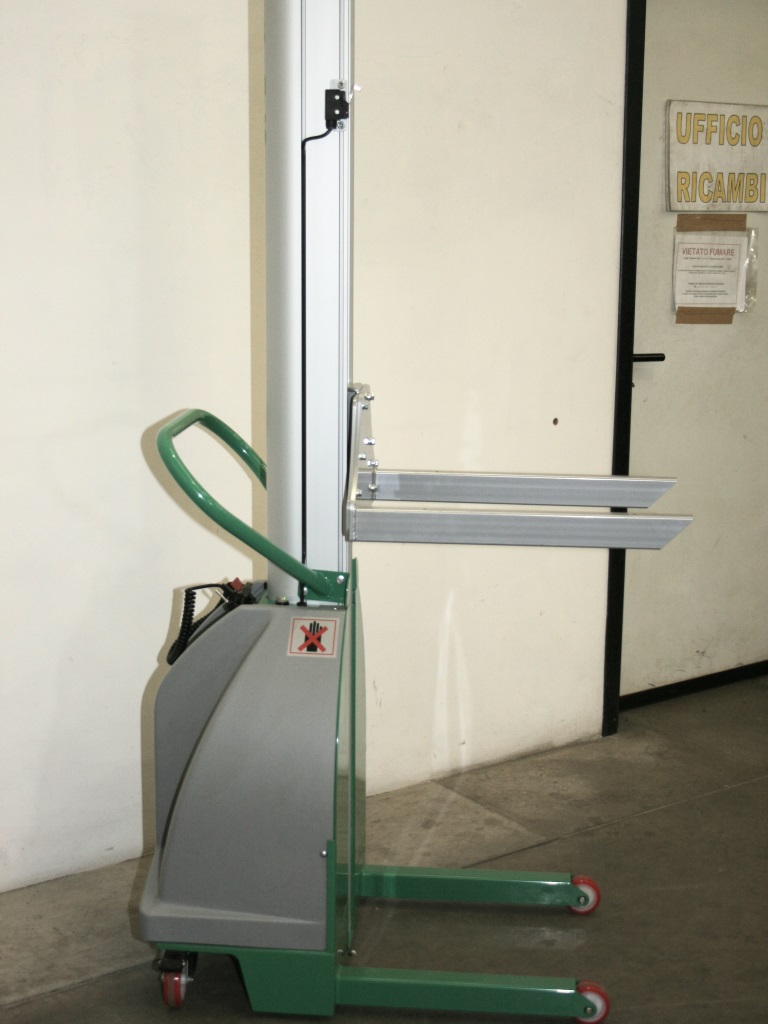

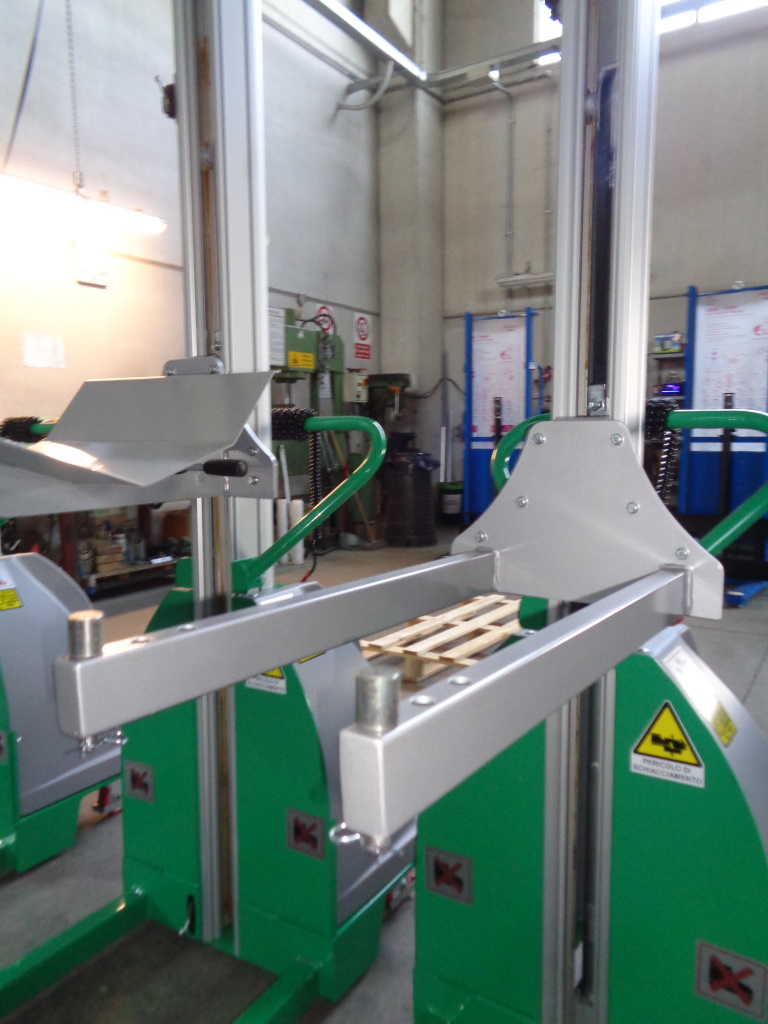

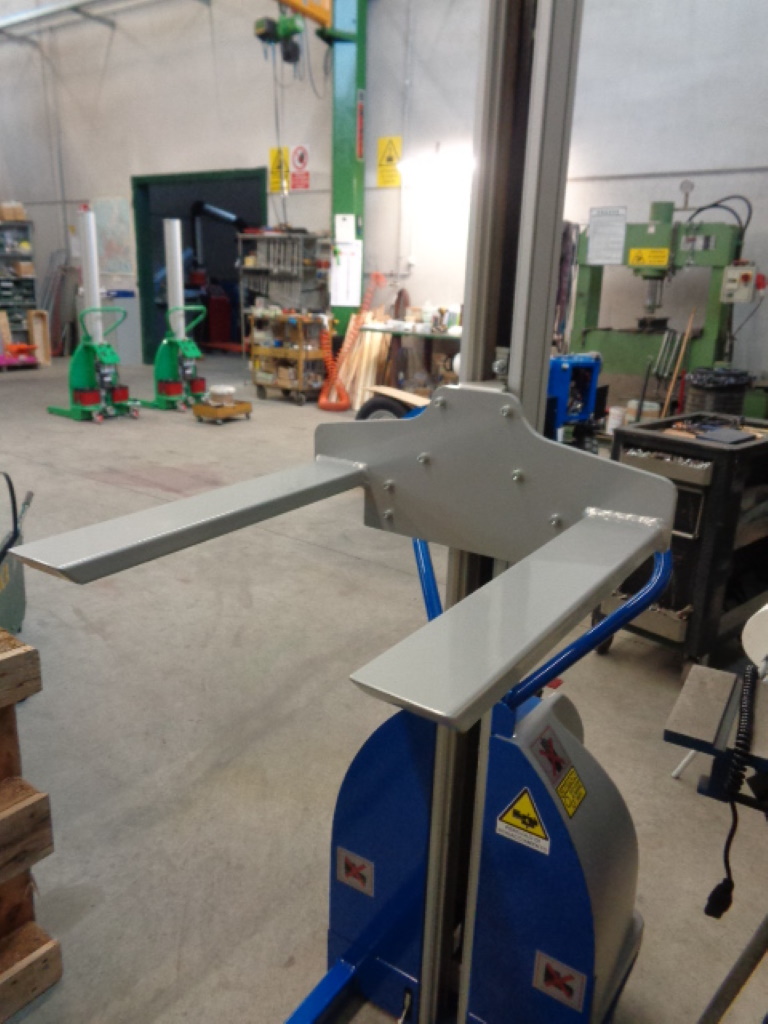

  • F - FORKS

    F - FORKS

    FORKS

  • G - HOOK

    G - HOOK

    HOOK

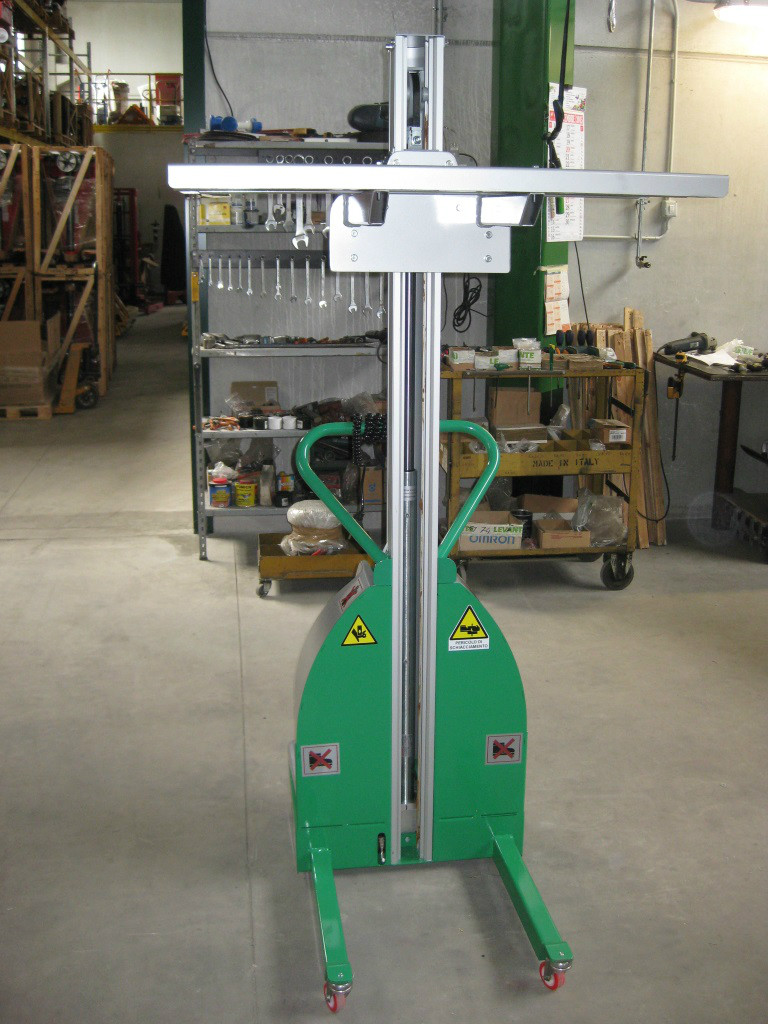

  • P - PLATFORM

    P - PLATFORM

    NYLON PLATFORM

  • PS - METAL PLATFORM WITH SPHERES

    PS - METAL PLATFORM WITH SPHERES


  • PV - GLASS HOLDER

    PV - GLASS HOLDER

    GLASS HOLDER

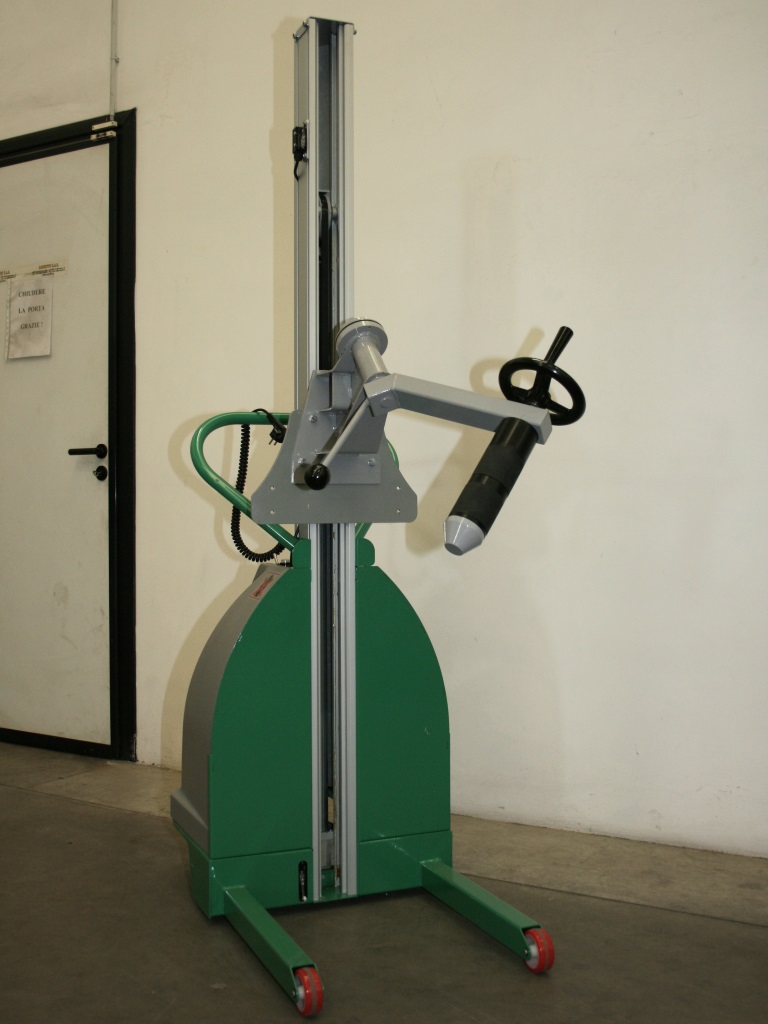

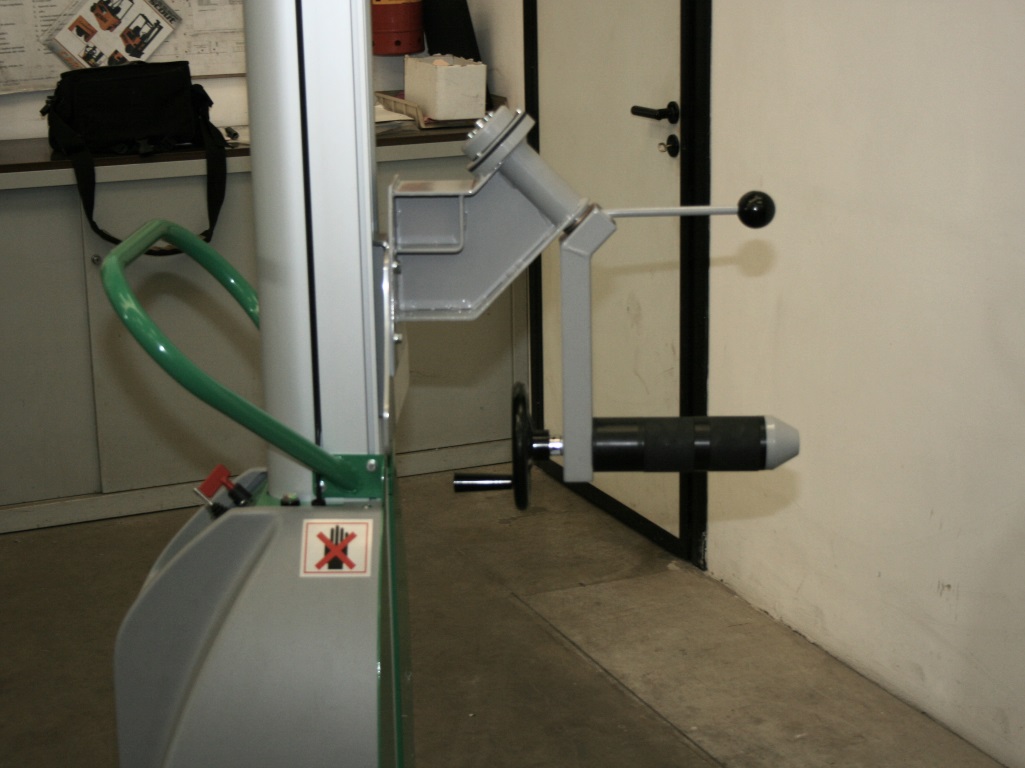

  • R - ROTO-REELS

    R - ROTO-REELS

    ROTO-REELS

  • S - SPINDLE

    S - SPINDLE

    SPINDLE

  • SR - SPUR WITH ROLLERS

    SR - SPUR WITH ROLLERS

    SPINDLE WITH ROLLERS

  • VS - ROTO-REELS

    VS - ROTO-REELS

    GEARED ROTO-REELS

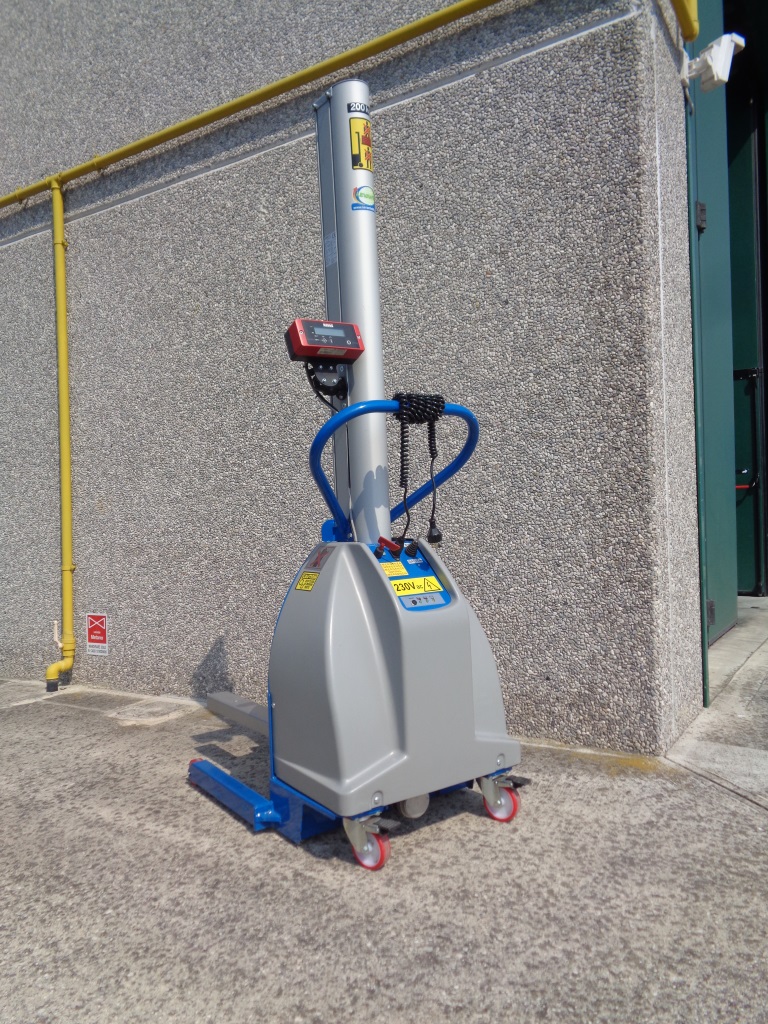

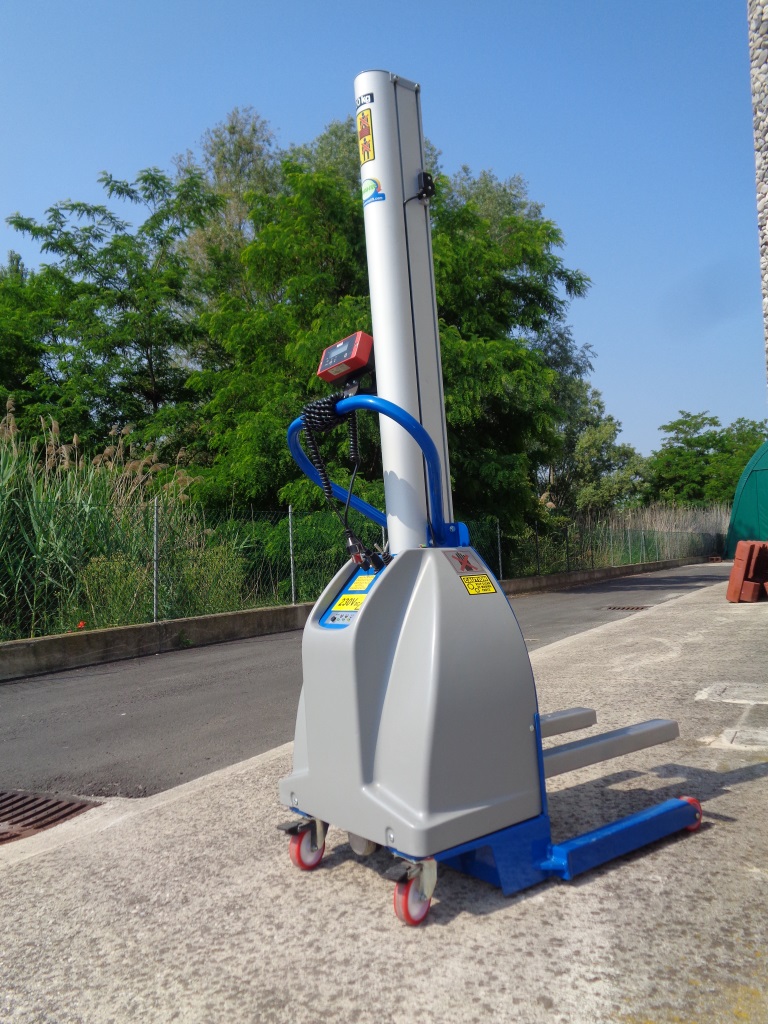

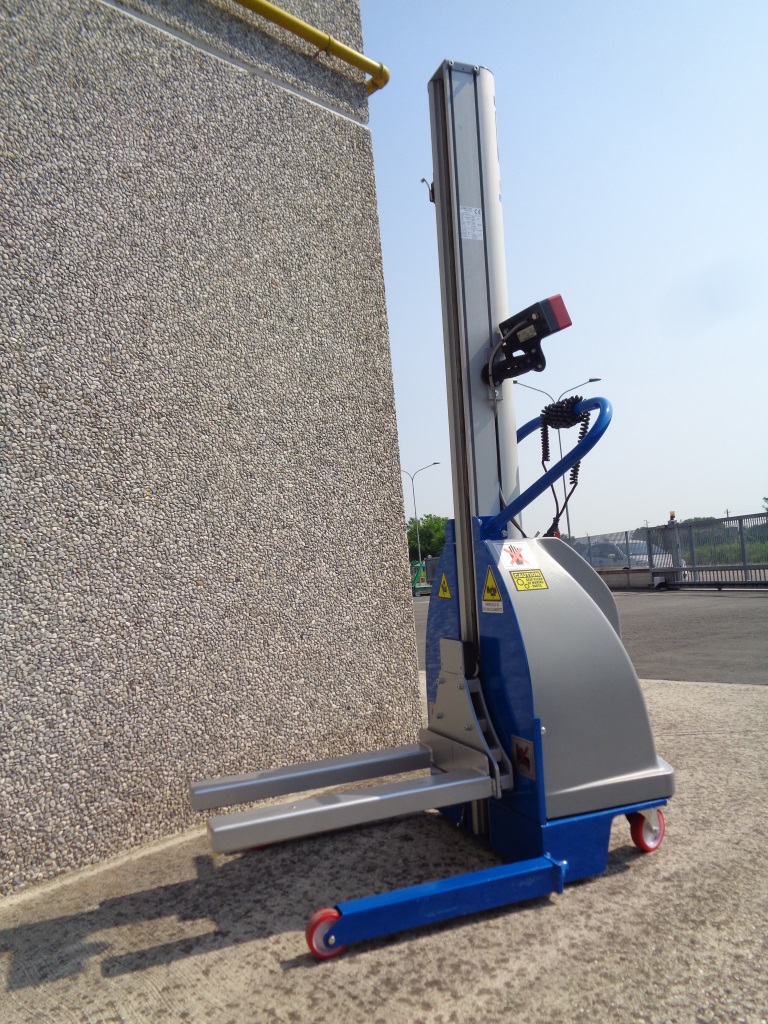

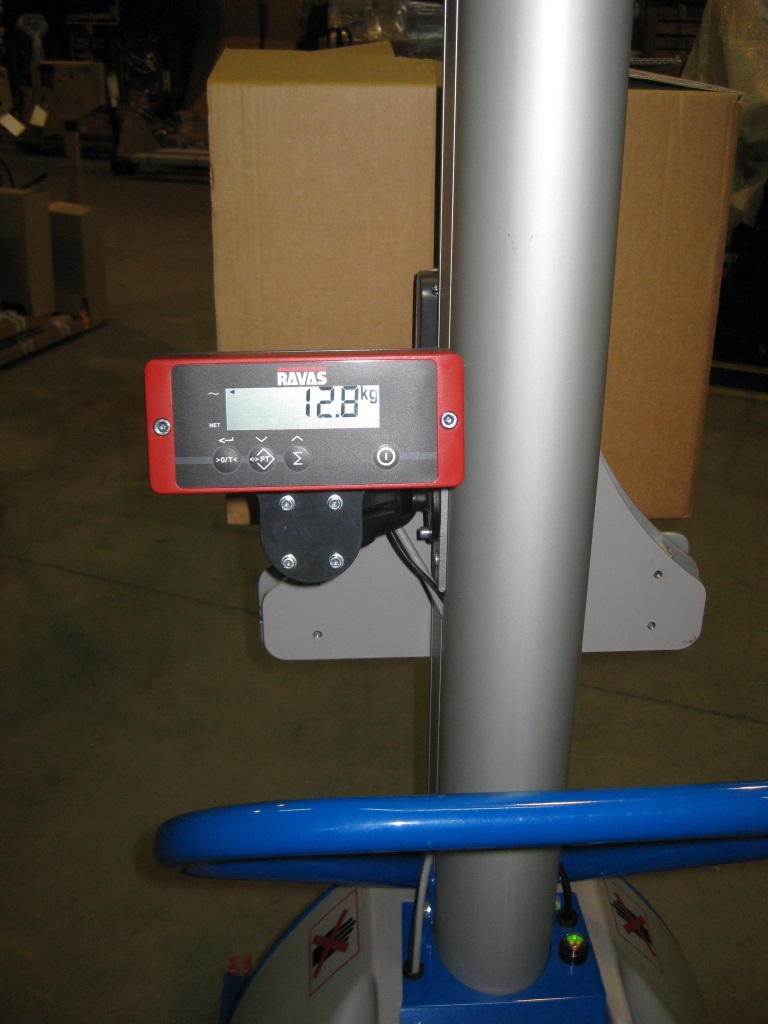

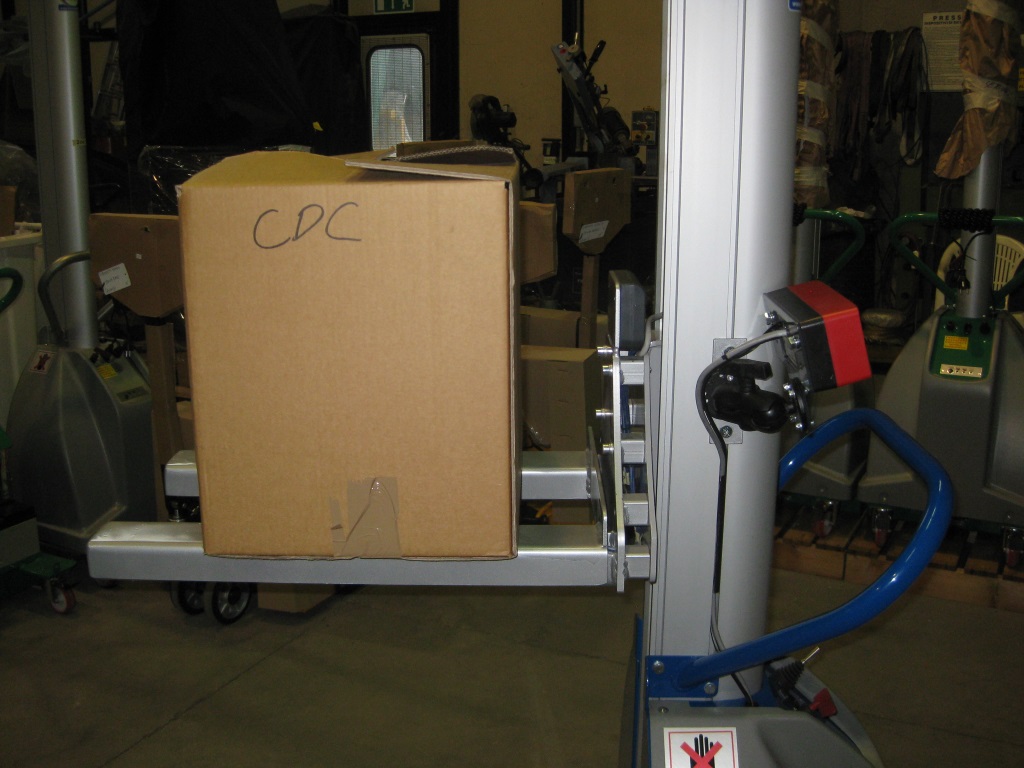

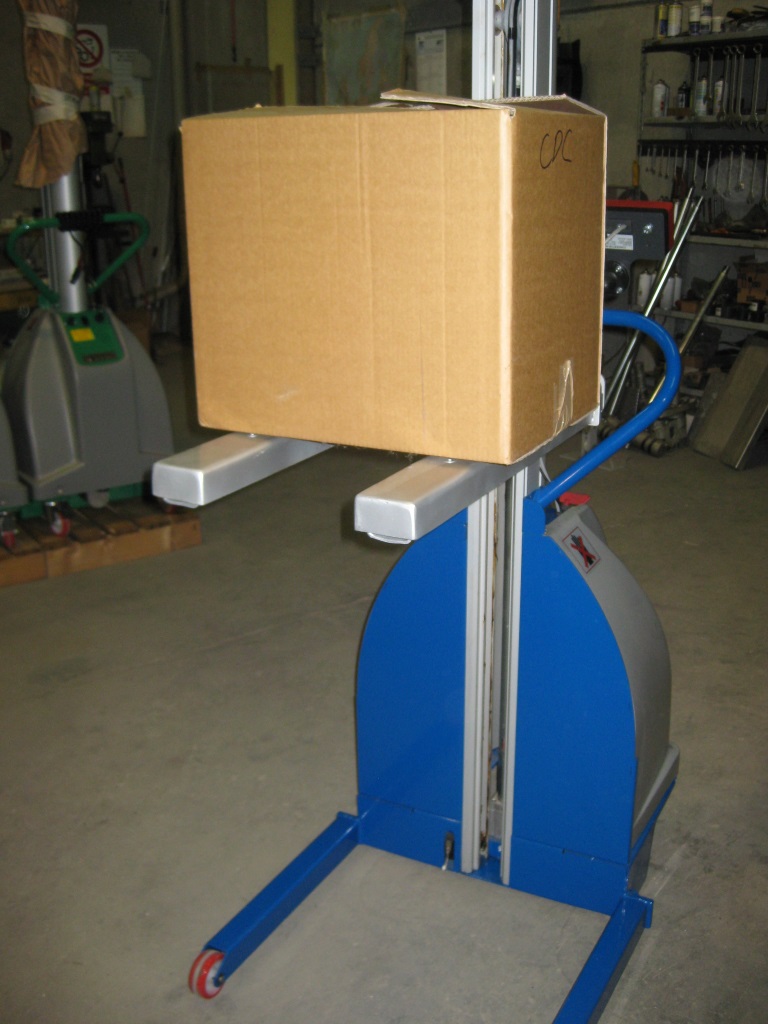

  • WS - WEIGHING FORKS

    WS - WEIGHING FORKS

    WEIGHING FORKS
