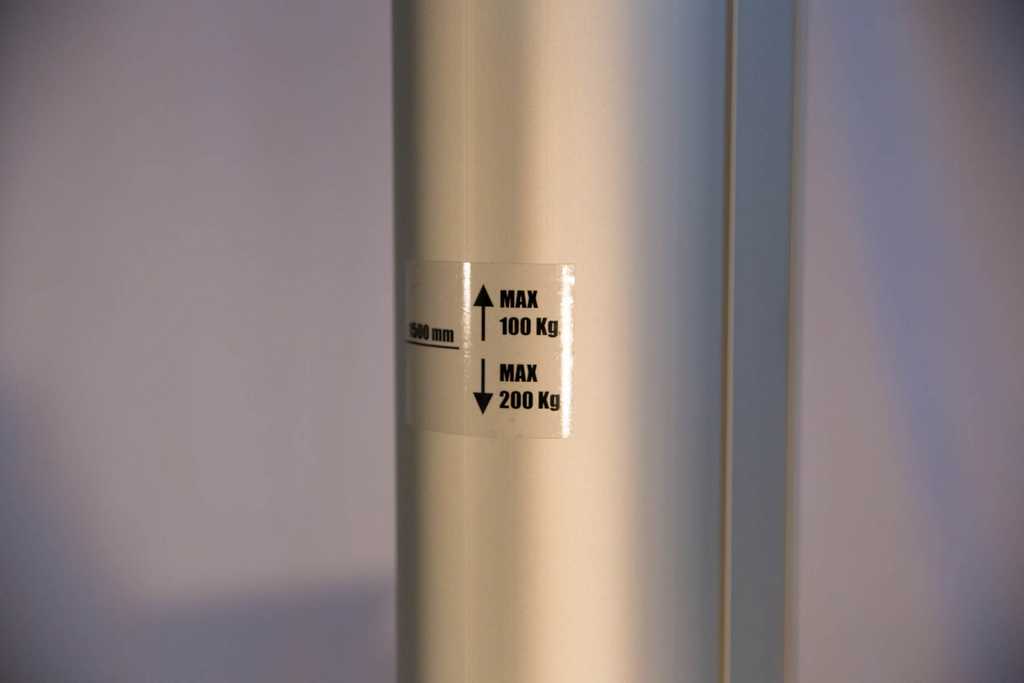

Multifunction semi-electric minilifter, featuring a capacity of 200 kg up to a lifting height of 1500 mm and 100 kg from 1500 to 2000 mm

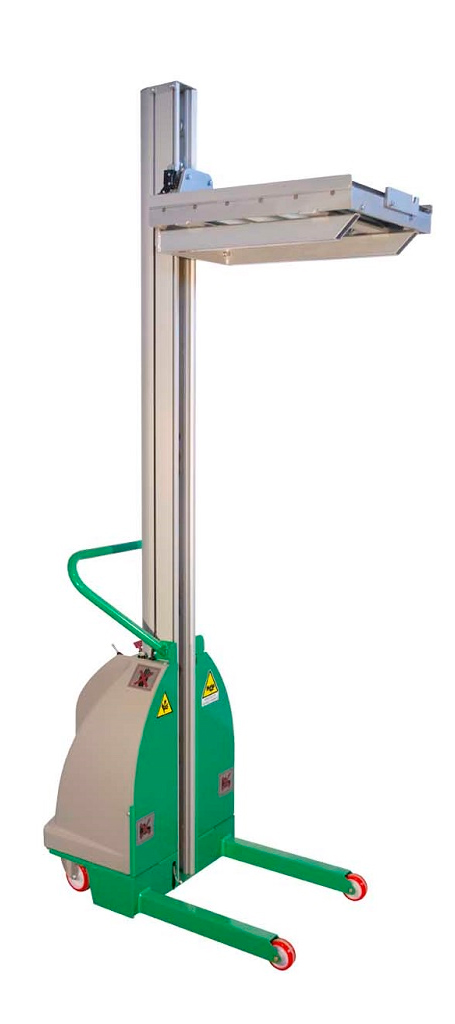

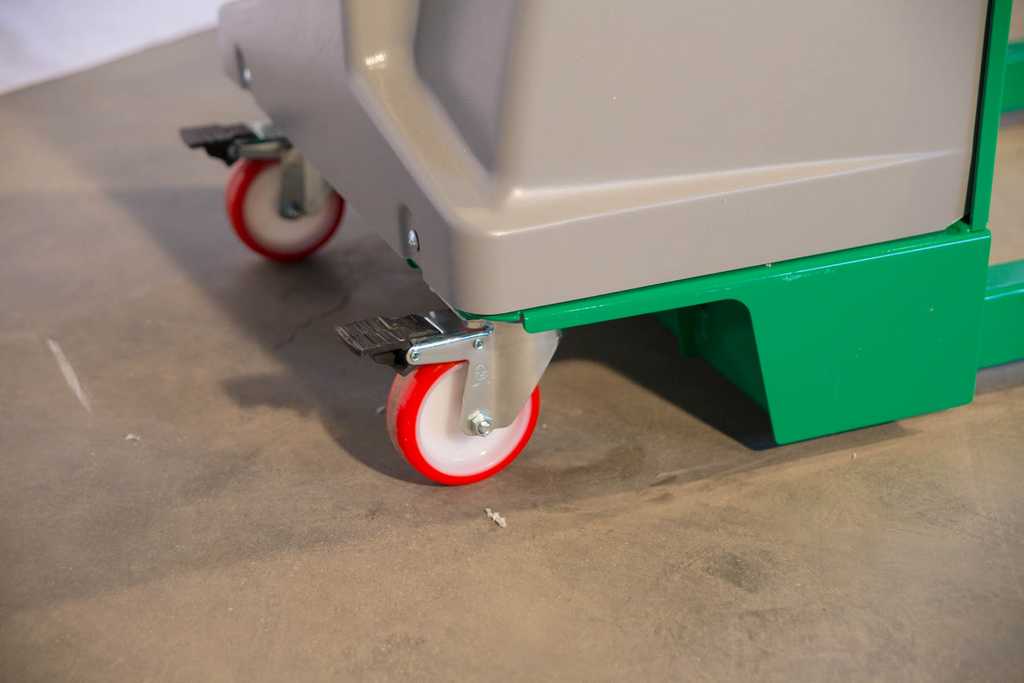

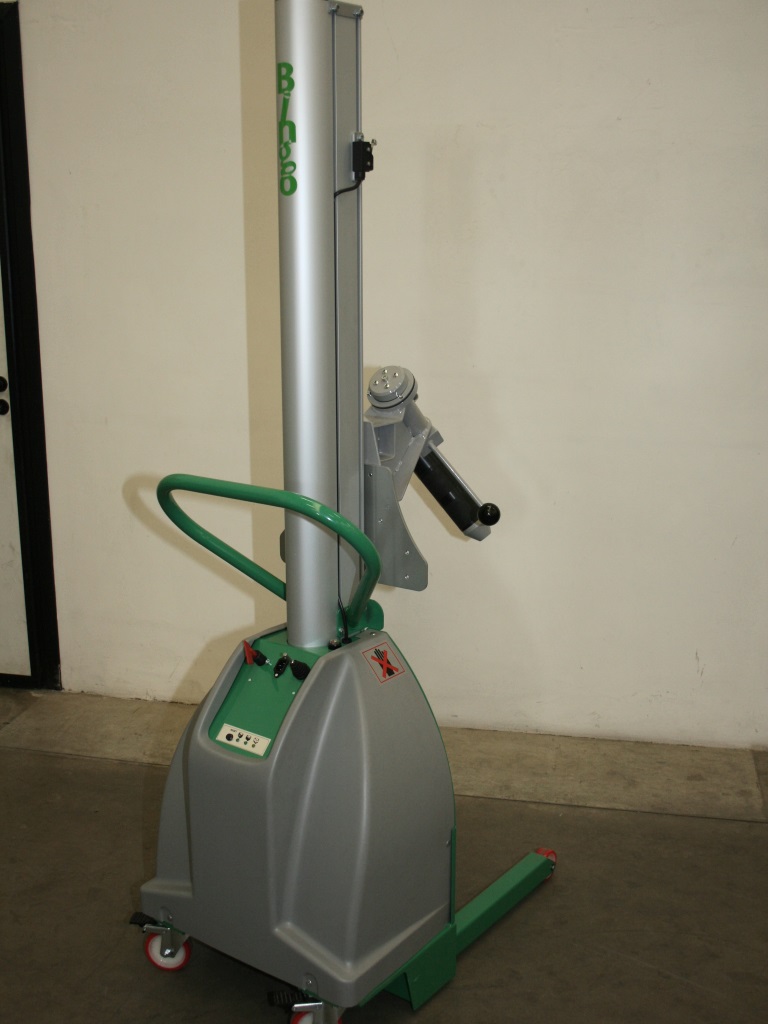

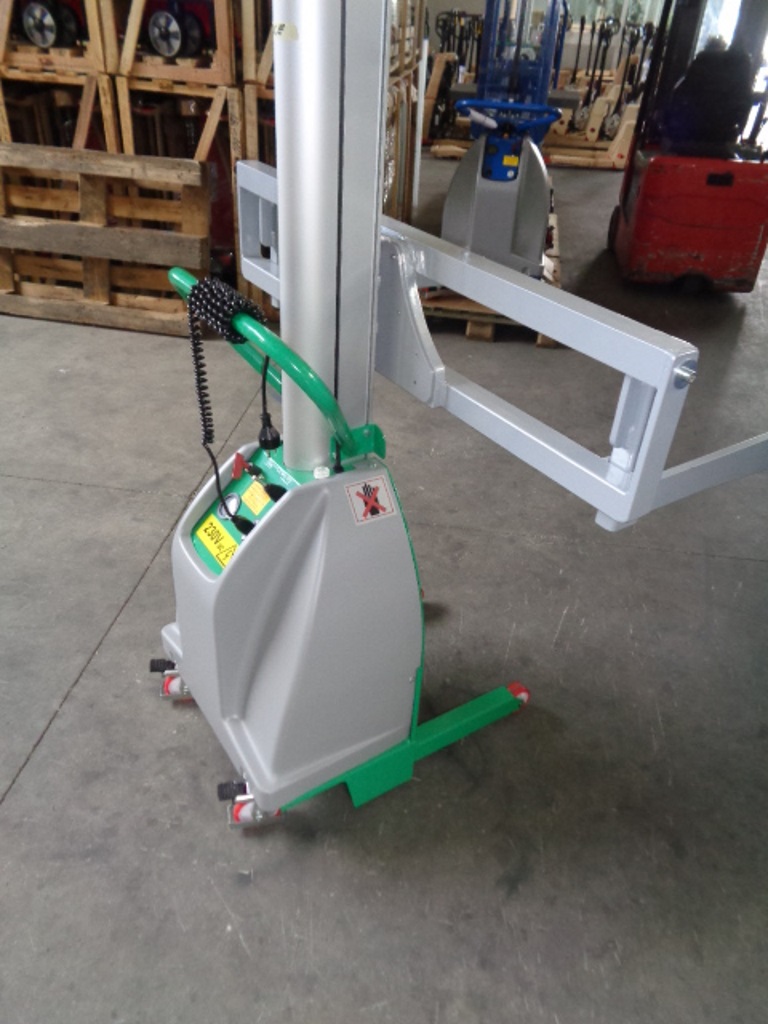

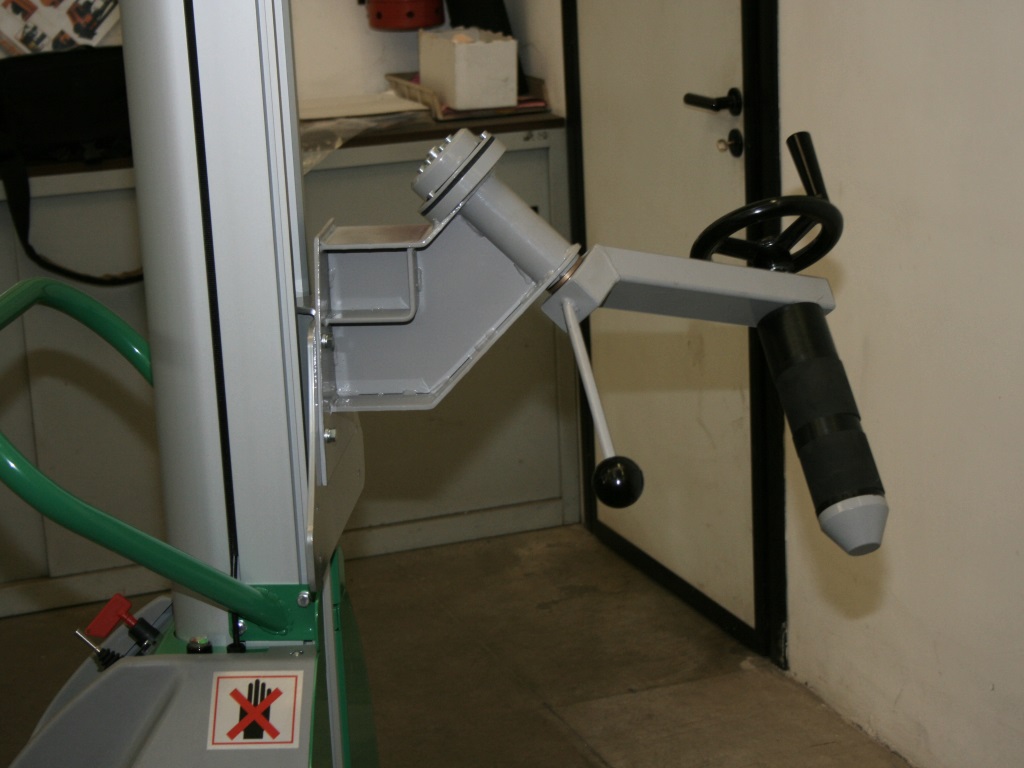

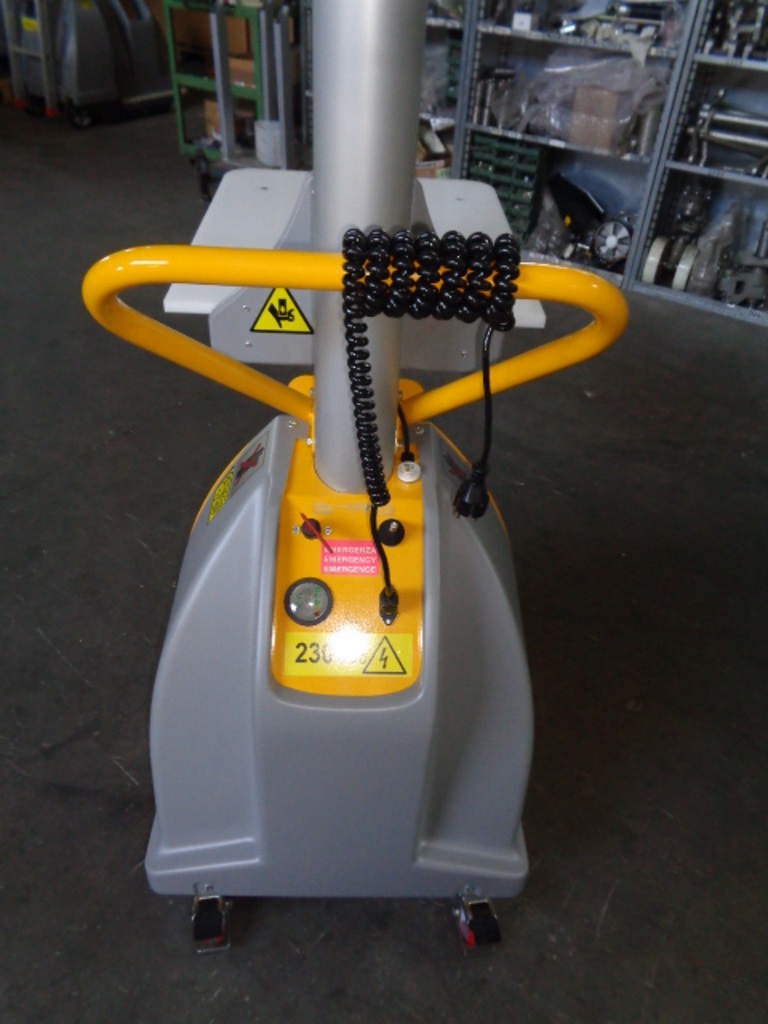

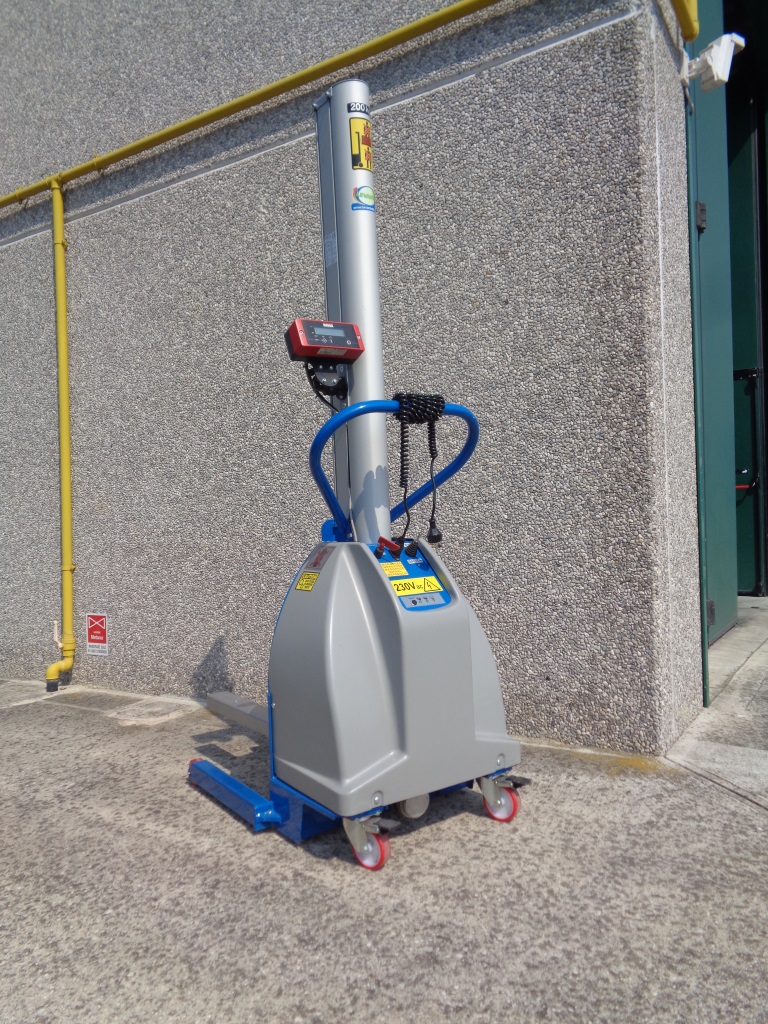

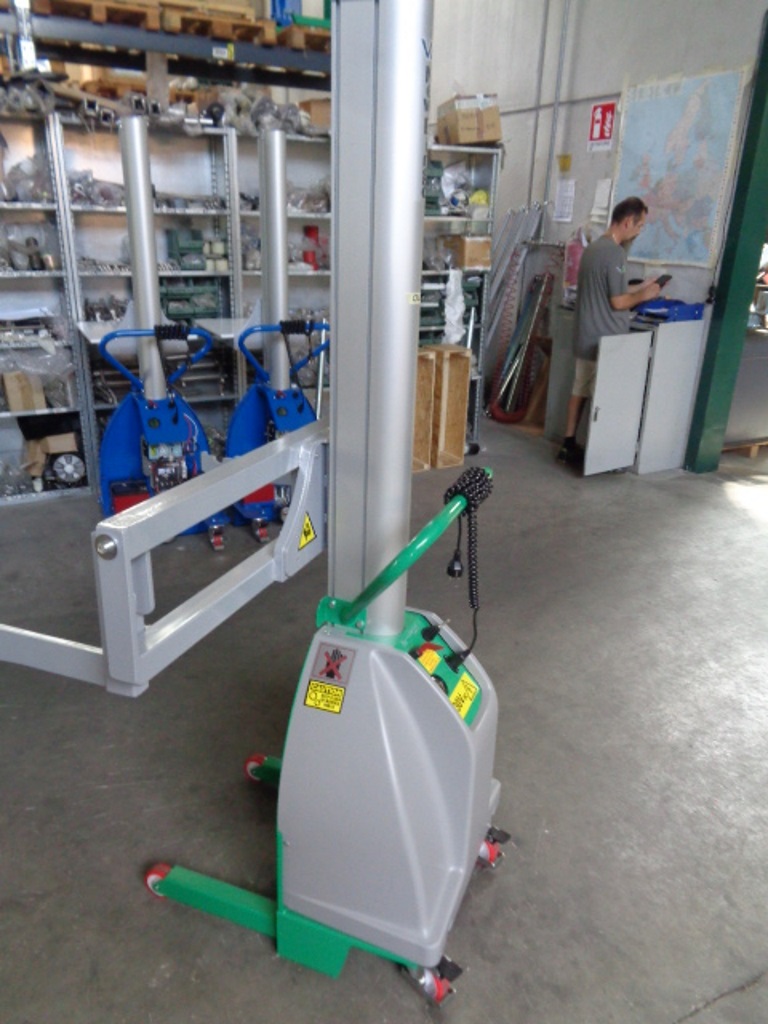

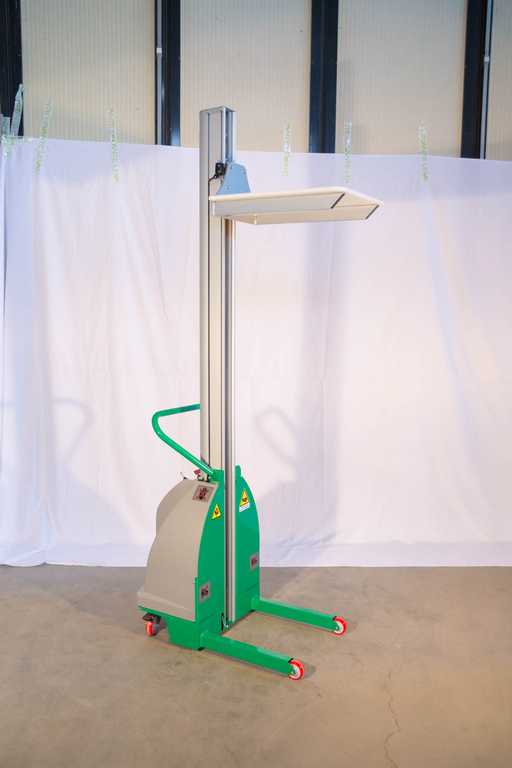

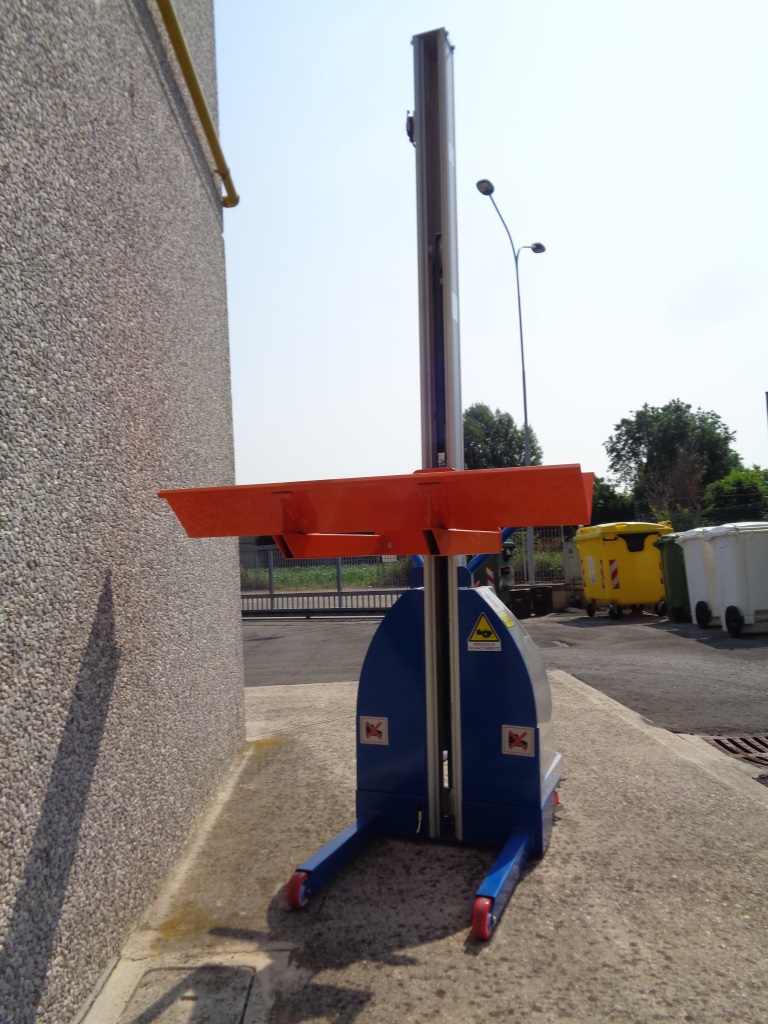

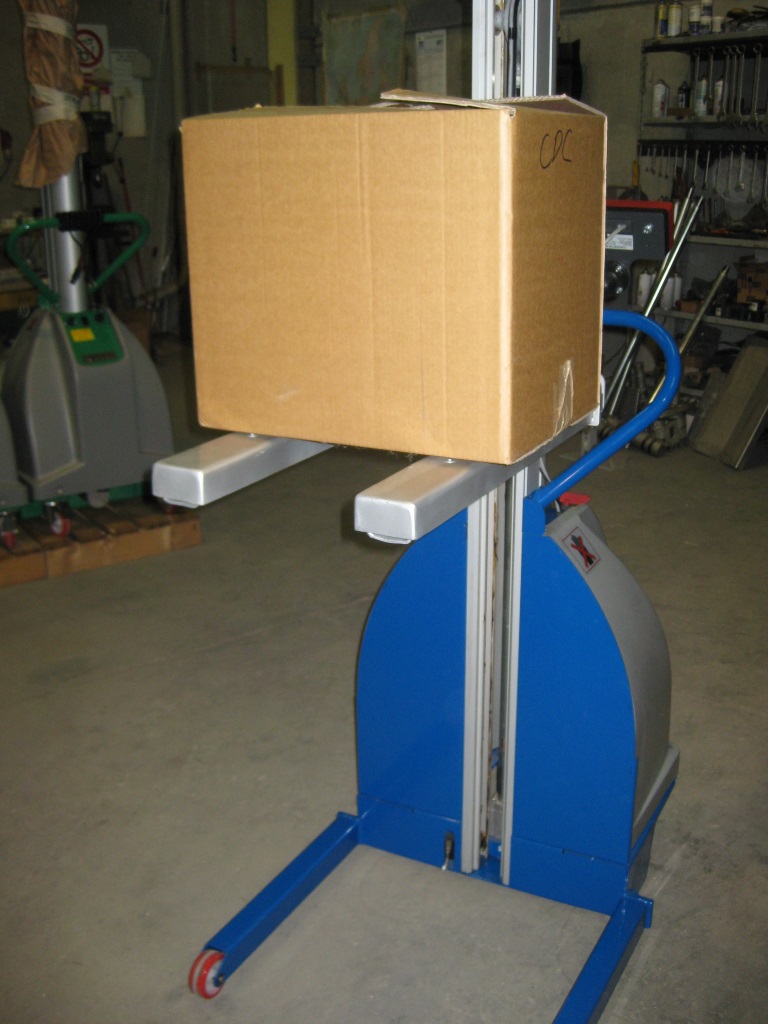

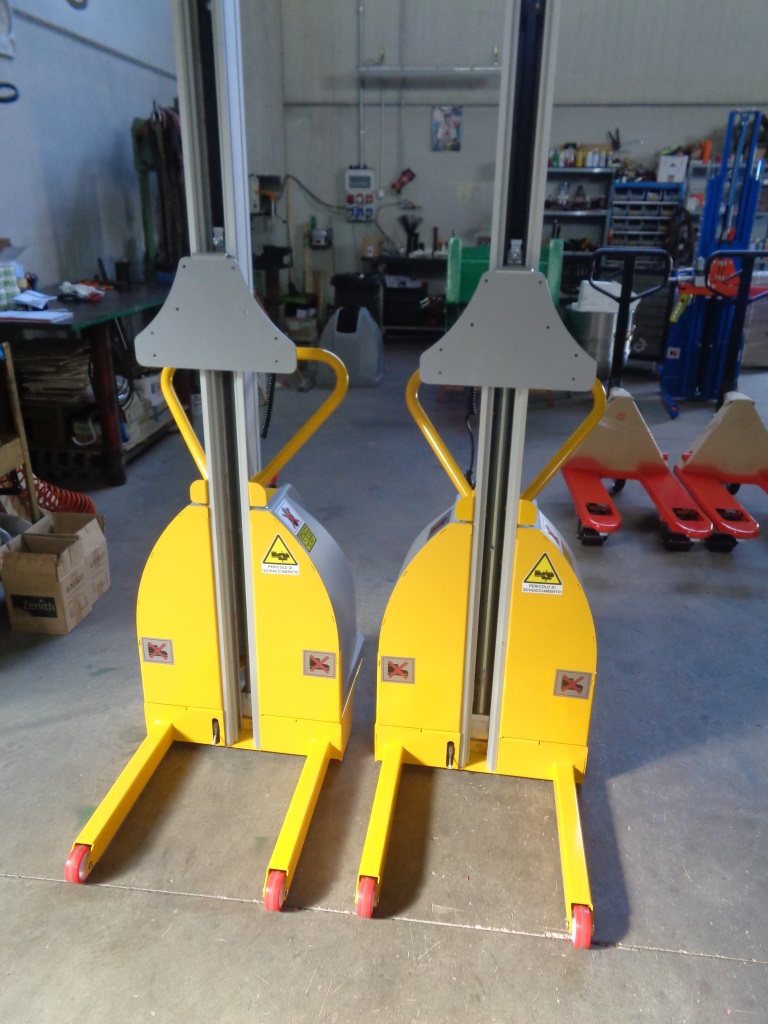

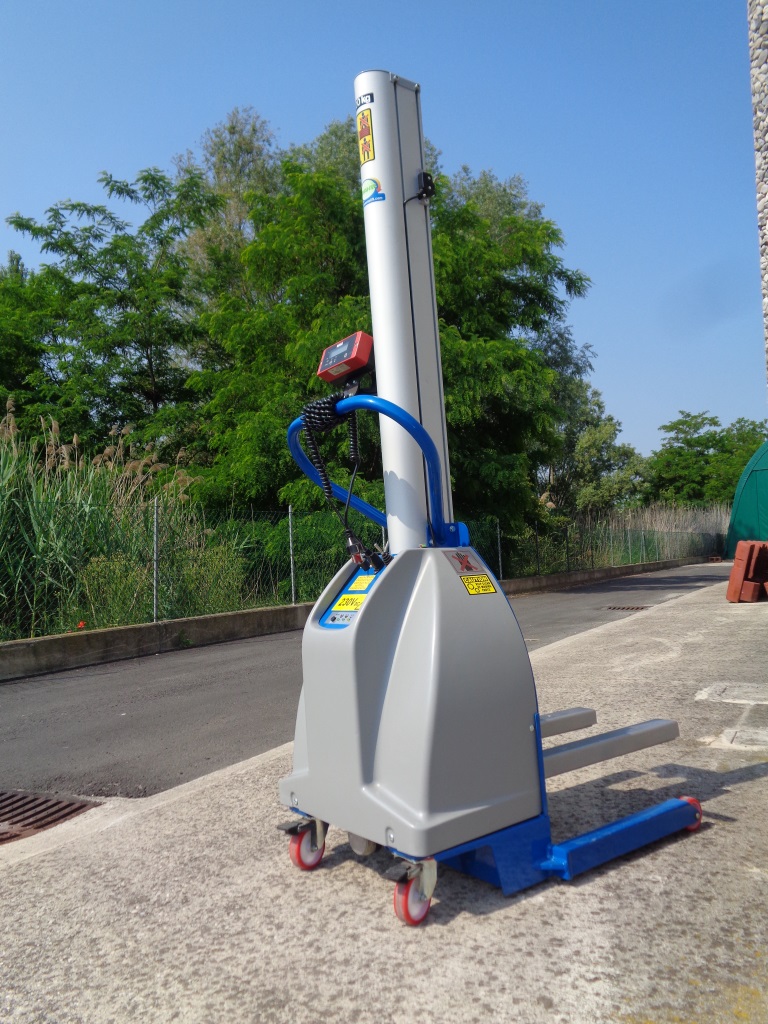

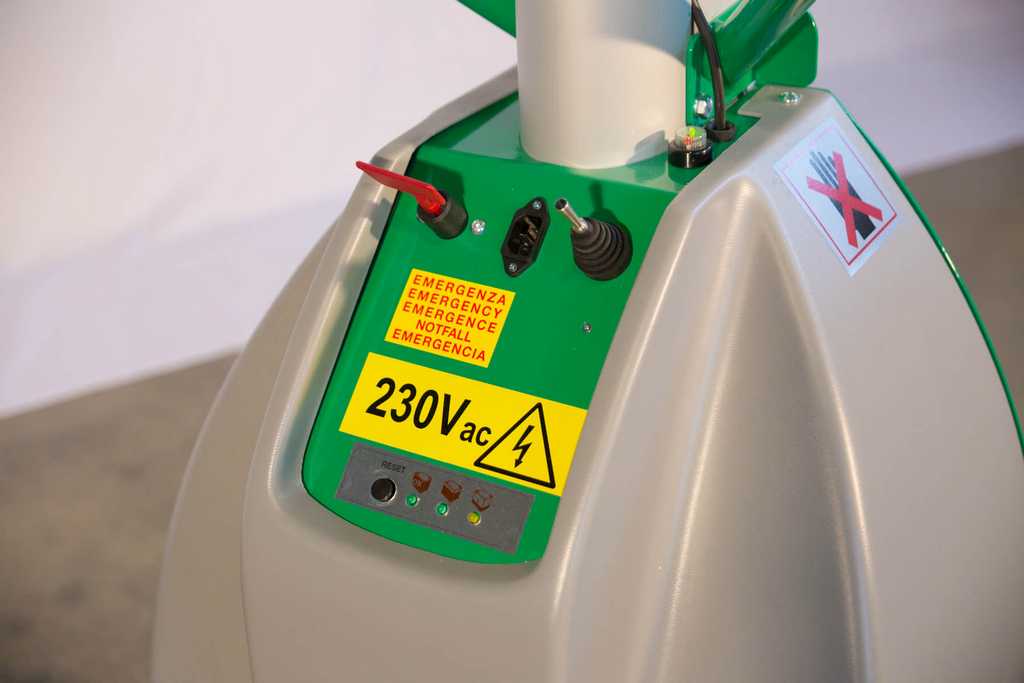

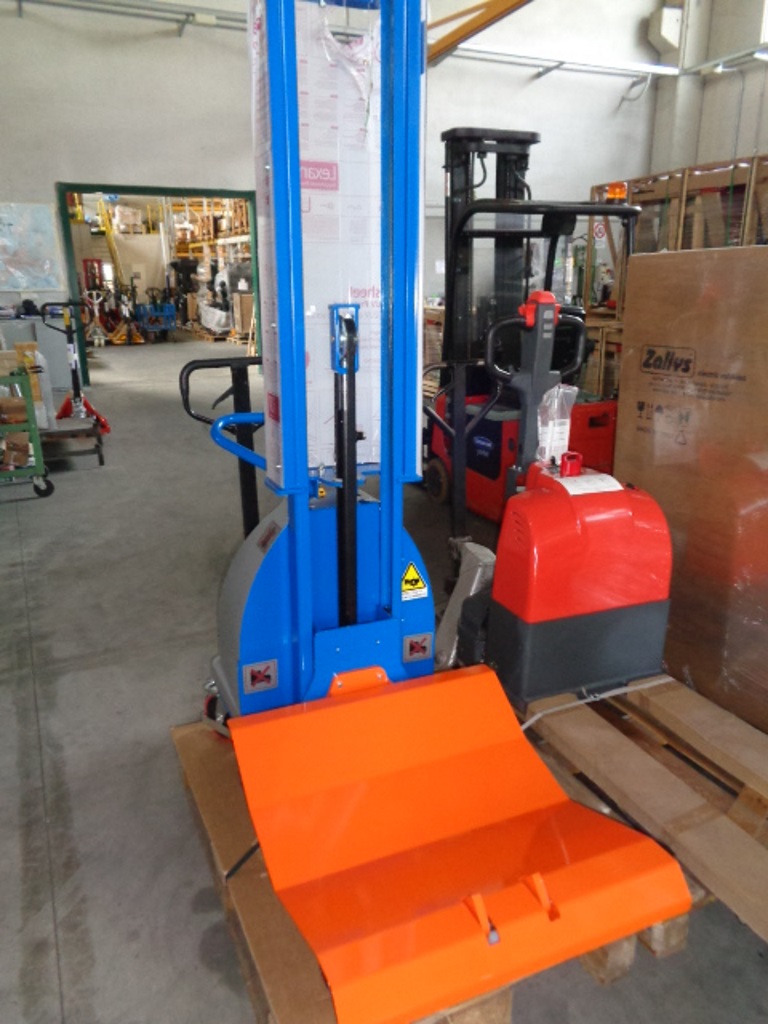

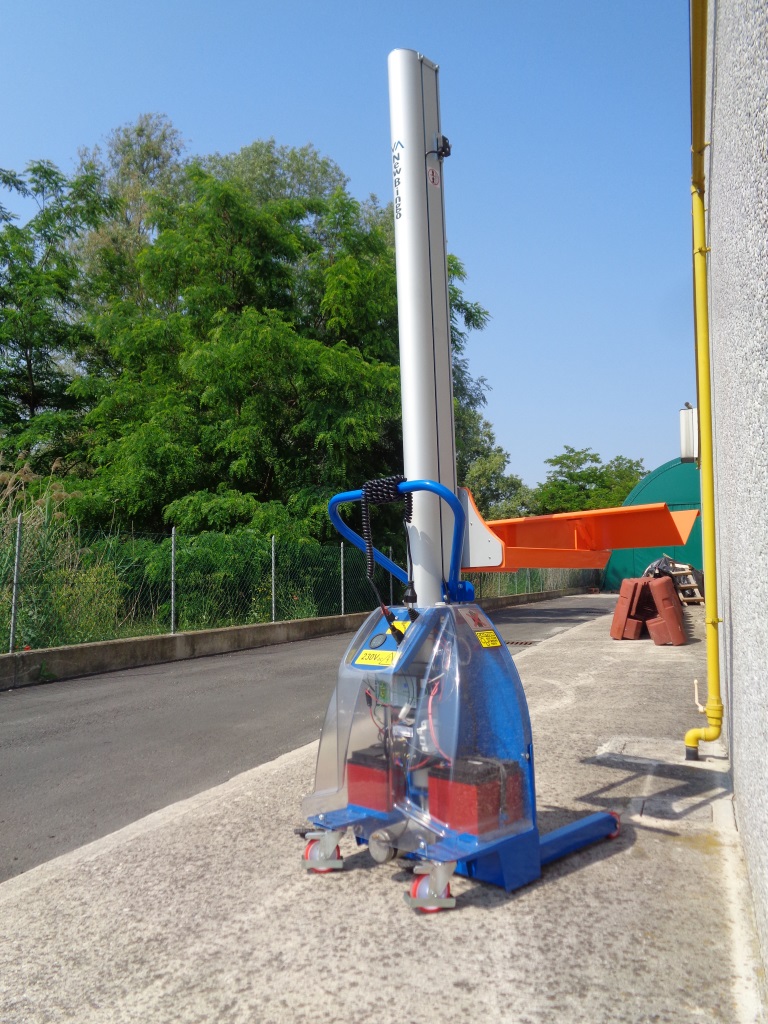

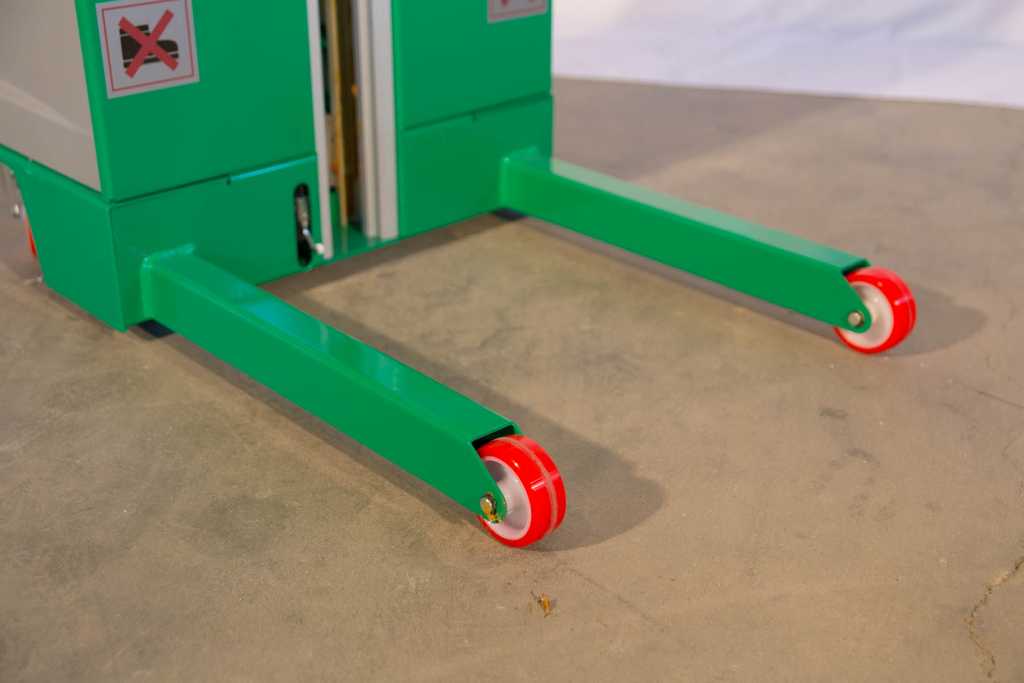

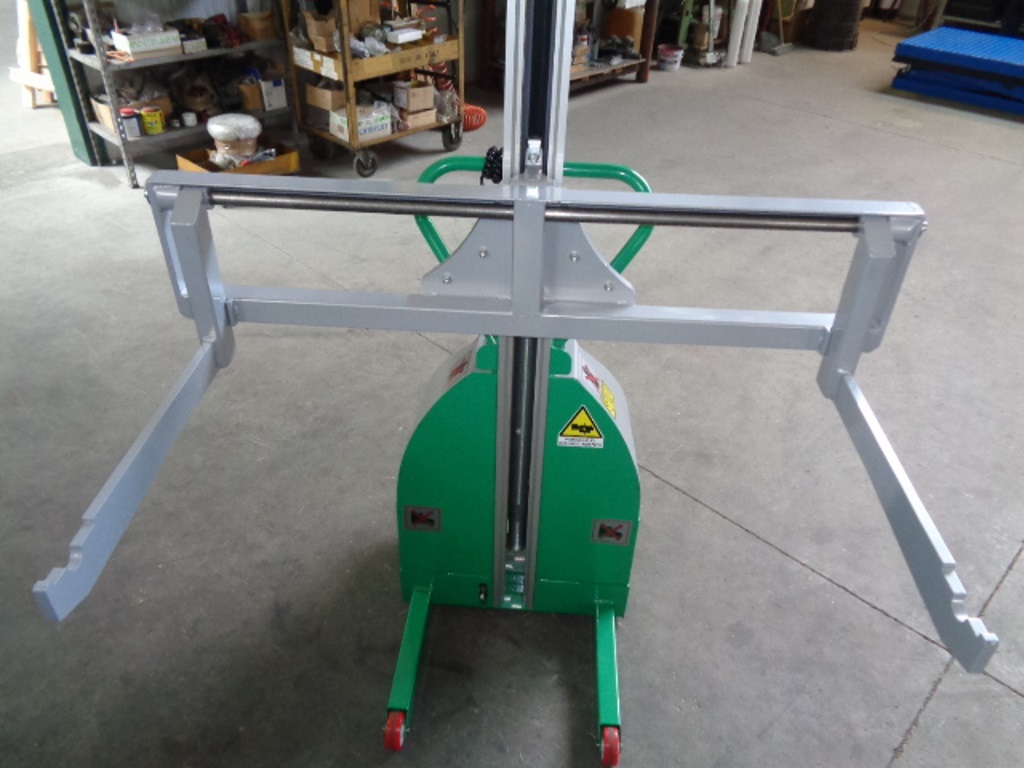

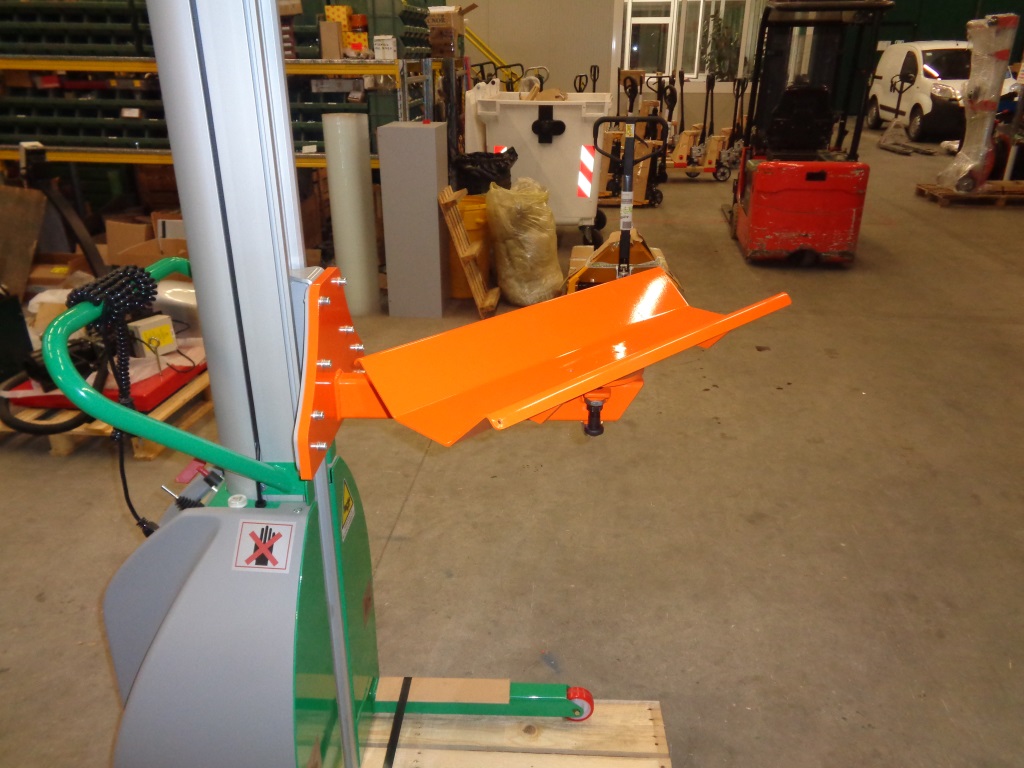

NEWBINGO 200.2 is a multifunction minilifter with manual drive and electric lifting, with aluminium mast to ensure lightness and great manoeuvrability. Featuring a capacity of 200 kg up to 1500 mm, downgraded to 100 kg from 1500 to 2000 mm. Fitted with 2X12V 38Ah lead-acid batteries that require no maintenance and a 24V 60A built-in charger. Two fixed wheels and two castor wheels with brake (optional feature: four castor wheels). Different accessories are available to complete the machine (see table in the ACCESSORIES section)
Request information
For information send an email to [email protected] or contact us at +39 0386 801814
|
Capacity |
kg |
200 fino a 1500 mm 100da 1500a2000mm |
|
Lifting |
mm |
2000 |
|

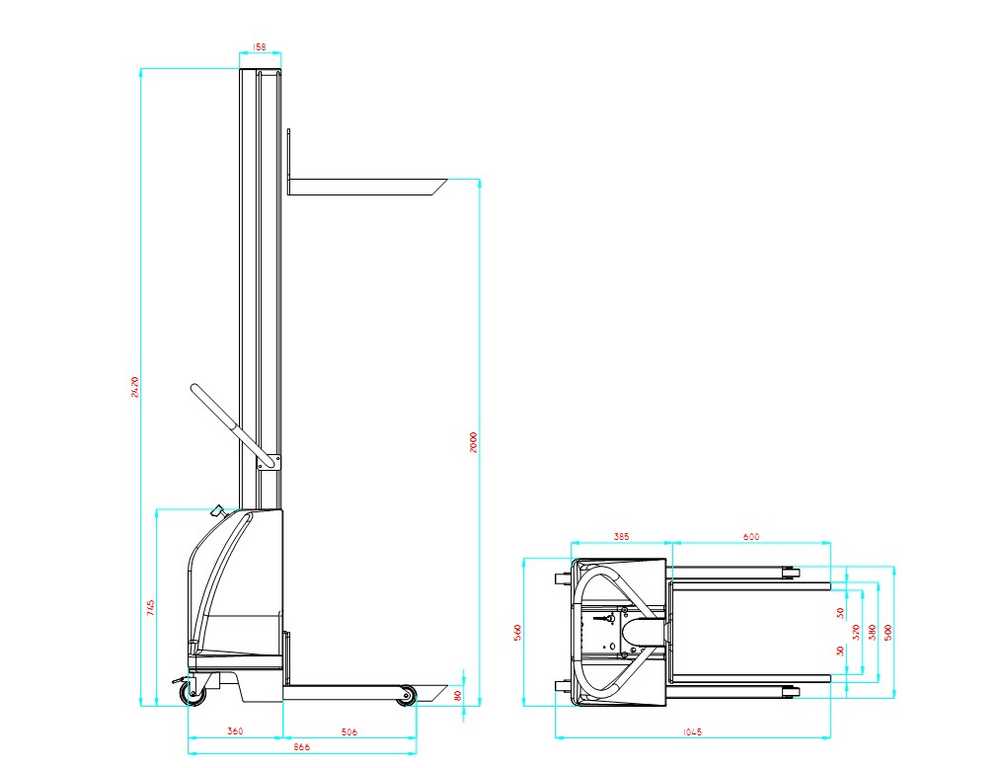

Mast Height |
mm |
2420 |
|
Rollers |
N/mm |
2/80x30 |
|
Wheels |
N/mm |
2/100x30 |
|
Lifting motor |
V/W |
24/300 |
|
Lifting speed |
cm/sec |
8,3/6,0 |
|
Battery |
NxV/Ah |
2x12/38 |
|
Charger |
V/A |
24/6 |
|
Weight |
kg |
110 |
