Multifunction semi-electric minilifter, featuring a capacity of 300 kg up to a lifting height of 1700 mm and 150 kg from 1700 to 2500 mm lifting

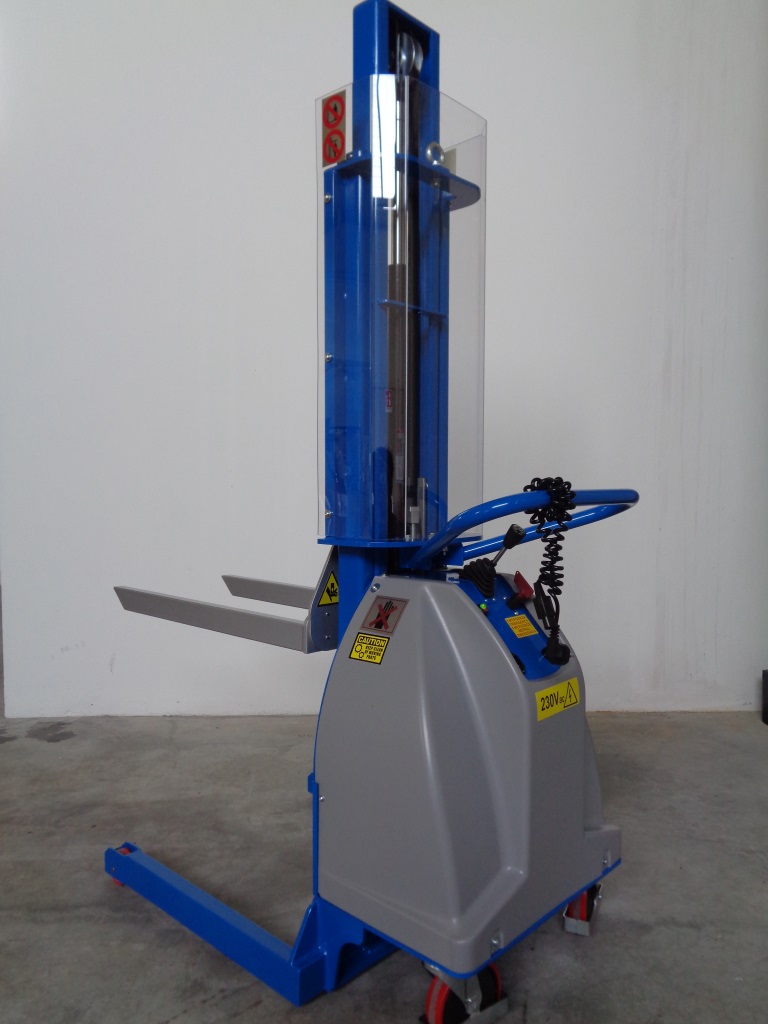

NEWBINGO UP is a multifunction minilifter with manual drive and electric lifting, with duplex mast to ensure minimum clearance. Lifting system with Hydrapp hydraulic mini-control unit. Featuring a capacity of 300 kg up to 1700 mm, downgraded to 150 kg from 1700 to 2500 mm. Fitted with 2x12V55Ah lead-acid batteries that require no maintenance and a 24V 6A built-in charger. Two fixed wheels and two castor wheels with brake. Different accessories are available to complete the machine (see table in the ACCESSORIES section)
Request information
|
Capacity |
kg |
300 fino a 1700 mm 150da 1700a2500mm |
|
Lifting |
mm |
2500 |
|
[altezza montante chiuso] |
mm |
1780 |
|
[altezza montante aperto] |
mm |
2860 |
|
Rollers |
N/mm |
2/80x30 |
|
Wheels |
N/mm |
2/150x40 |
|
Lifting motor |
V/W |
24/300 |
|
Lifting speed |
cm/sec |
8,3/6,0 |
|
Battery |
NxV/Ah |
2x12/55 |
|
Charger |
V/A |
24/6 |
|
Weight |
kg |
182 |
